FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION

id041200801200

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(4)  Decoration panel (SeeDECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Console (See REAR CONSOLE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

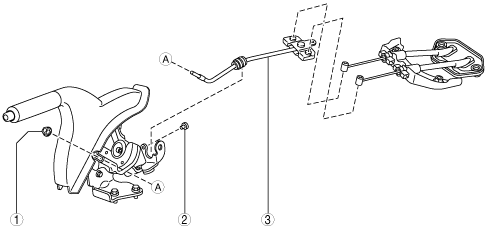

L.H.D.

am6zzw00005004

1	Adjusting nut
2	Clip
3	Front parking brake cable

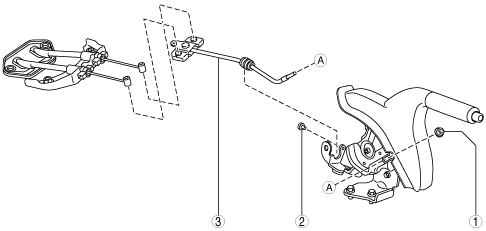

R.H.D.

am6zzw00005005

1	Adjusting nut
2	Clip
3	Front parking brake cable
