AUTOMATIC TRANSAXLE SHIFT MECHANISM LOCATION INDEX

id051800269000

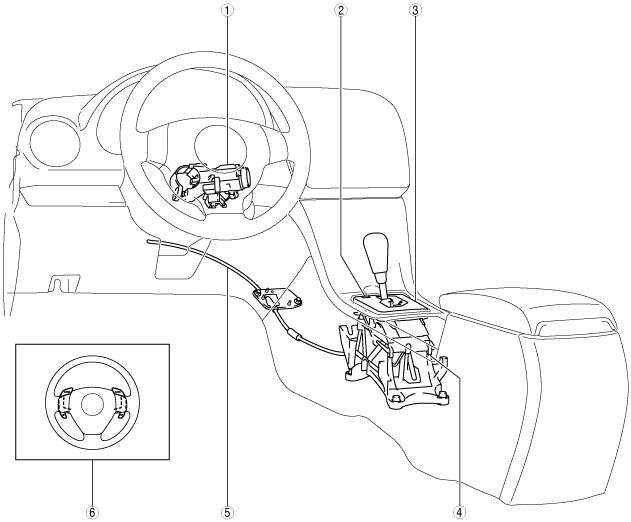

L.H.D.

am6zzw00004934

1	Steering lock (See KEY INTERLOCK SOLENOID INSPECTION.)
2	Emergency override button (See EMERGENCY OVERRIDE BUTTON INSPECTION.)
3	Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM INSPECTION.)
4	Selector lever component connector (See SHIFT-LOCK SOLENOID INSPECTION.) (See SELECTOR LEVER COMPONENT INSPECTION.)
5	Selector cable (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See SELECTOR CABLE ADJUSTMENT.)
6	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION.)

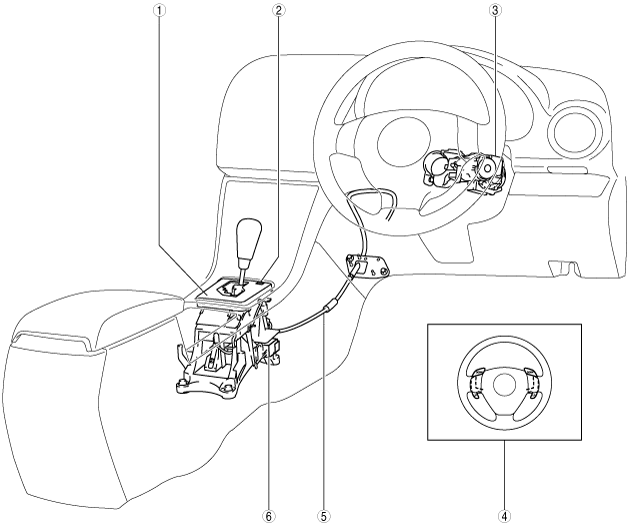

R.H.D.

am6zzw00004935

1	Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM INSPECTION.)
2	Emergency override button (See EMERGENCY OVERRIDE BUTTON INSPECTION.)
3	Steering lock (See KEY INTERLOCK SOLENOID INSPECTION.)
4	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION.)
5	Selector cable (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See SELECTOR CABLE ADJUSTMENT.)
6	Selector lever component connector (See SHIFT-LOCK SOLENOID INSPECTION.) (See SELECTOR LEVER COMPONENT INSPECTION.)
