HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

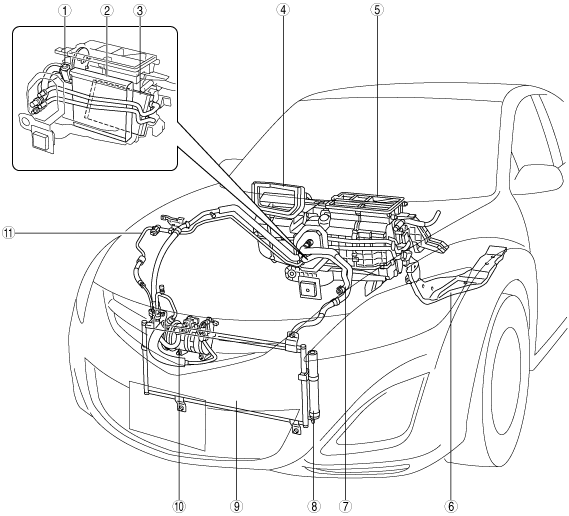

L.H.D. (MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5)

am6zzw00006665

1
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
2
Evaporator
(See EVAPORATOR INSPECTION.)
3
Heater core
(See HEATER CORE INSPECTION.)
4
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
5
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
6
Rear heat duct
(See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
7
Heater pipe
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
(See CONDENSER INSPECTION.)
10
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION.)
11
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION.)

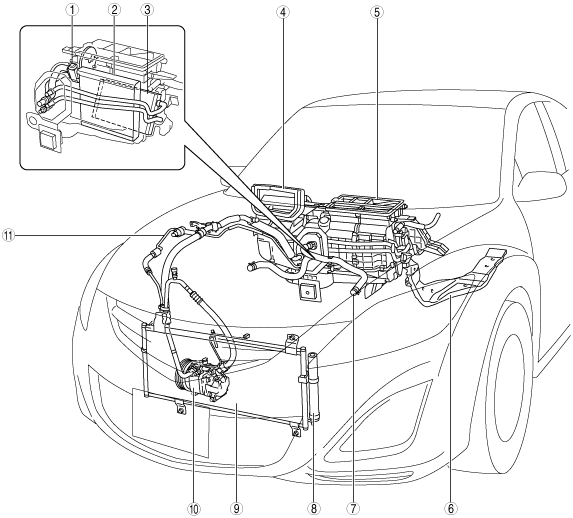

L.H.D. (MZR-CD 2.2)

am6zzw00006666

1
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
2
Evaporator
(See EVAPORATOR INSPECTION.)
3
Heater core
(See HEATER CORE INSPECTION.)
4
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
5
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
6
Rear heat duct
(See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
7
Heater pipe
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
(See CONDENSER INSPECTION.)
10
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION.)
11
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION.)


R.H.D. (MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5)

am6zzw00006667

1
Evaporator
(See EVAPORATOR INSPECTION.)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Heater core
(See HEATER CORE INSPECTION.)
4
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
5
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
6
Rear heat duct
(See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
7
Heater pipe
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
(See CONDENSER INSPECTION.)
10
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION.)
11
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION.)

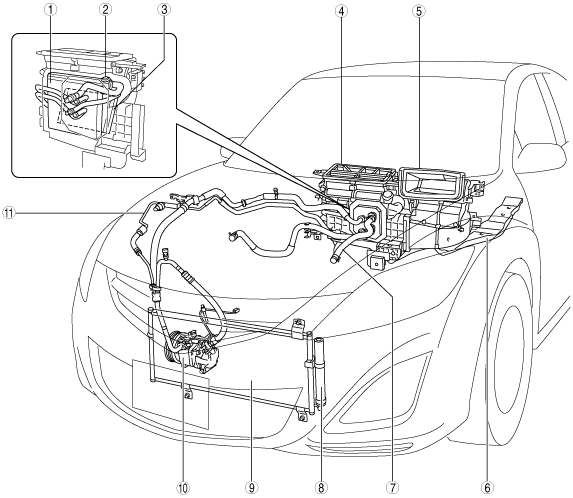

R.H.D. (MZR-CD 2.2)

am6zzw00006668

1
Evaporator
(See EVAPORATOR INSPECTION.)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Heater core
(See HEATER CORE INSPECTION.)
4
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
5
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
6
Rear heat duct
(See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
7
Heater pipe
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
(See CONDENSER INSPECTION.)
10
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION.)
11
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION.)
