REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION
id091000505800
1. Remove the following parts:
- (1) Trunk mat (4SD, Wagon)
- (2) Trunk board (4SD, Wagon)
- (3) Sub-trunk (Wagon)
- (4) Trunk end trim (4SD, Wagon) (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Rear scuff plate (Wagon) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Tire house trim (Wagon) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (7) Trunk side upper trim (Wagon) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Trunk side trim (4SD, Wagon) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (9) Service hole cover (5HB)
- (10) Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
- (11) Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (12) Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)
2. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION)

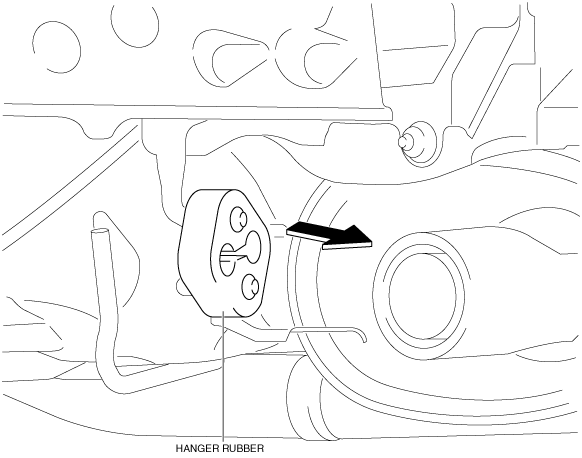

3. Remove the hanger rubber in the direction of the arrow shown in the figure.

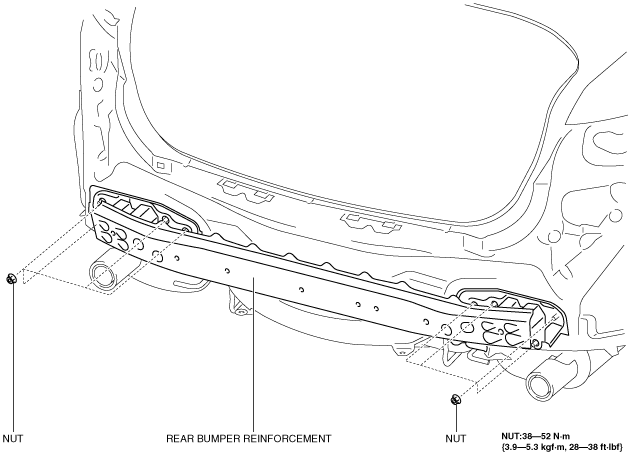

4. Remove the nuts and remove the rear bumper reinforcement.
5. Install in the reverse order of removal.
