KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0914004405z3

Vehicle Interior, Front

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See. UPPER PANEL REMOVAL/INSTALLATION)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(6)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

3.  Disconnect the connector.

am6zzw00000913

4.  Remove the keyless antenna.

5.  Install in the reverse order of removal.

Vehicle Interior, Center

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See. UPPER PANEL REMOVAL/INSTALLATION)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6zzw00000914

4.  Remove the screw.

5.  Remove the keyless antenna.

6.  Install in the reverse order of removal.

Vehicle Interior, Rear

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion. (4SD)(See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

3.  Remove the rear seat. (5HB, WGN) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

4.  Disconnect the connector.

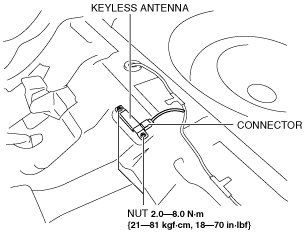

am6zzw00003565

5.  Remove the nut.

6.  Remove the keyless antenna.

7.  Install in the reverse order of removal.

Vehicle Exterior, Rear

1.  Disconnect the negative battery cable.

2.  Remove the nut.

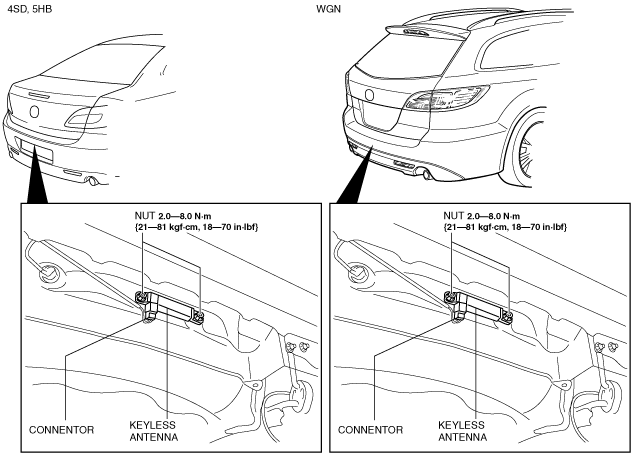

am6zzw00005542

3.  Disconnect the connector.

4.  Remove the keyless antenna.

5.  Install in the reverse order of removal.

Vehicle Exterior, Driver's Door/Passenger's Door

Note

•  The keyless antenna (vehicle exterior, driver's door/passenger's door) is built into the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

am2zzw00000552
