LIFTGATE OPENER SWITCH INSPECTION
id091400444300
5HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
- (2) Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
- (4) High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
- (5) Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)

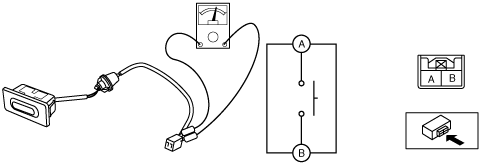

3. Verify the continuity of liftgate opener switch terminals A and B.
4. Verify that the continuity is as indicated in the table.
-
• If not as indicated in the table, replace the liftgate opener switch.
WGN
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
- (2) Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Recess (See RECESS REMOVAL/INSTALLATION.)
- (4) Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)
- (6) Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
3. Verify the continuity of liftgate opener switch terminals A and B.
4. Verify that the continuity is as indicated in the table.
-
• If not as indicated in the table, replace the liftgate opener switch.
