FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION
id091400445800
L.H.D.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front seat (driver's seat)(See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (driver's side)(See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (driver's side)(See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Rear seat cushion(4SD)(See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
- (5) Rear seat back(4SD)(See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
- (6) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (7) Trunk side upper trim(5HB, WGN) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (9) Trunk side trim (driver's seat)(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (10) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

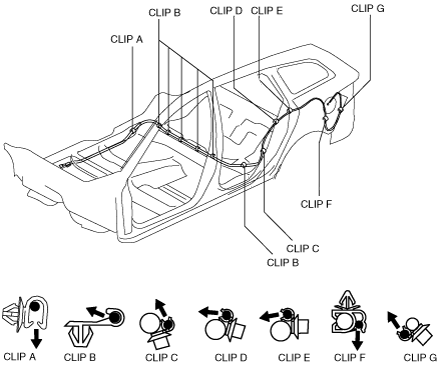

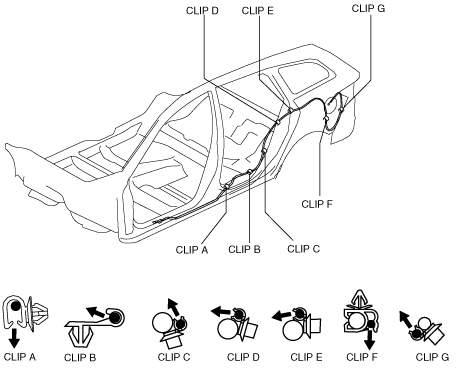

3. Remove the fuel-filler lid opener cable.
4SD
5HB
WGN
4. Install in the reverse order of removal.
R.H.D.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front seat (driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (passenger’s side) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Rear seat cushion(4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
- (5) Rear seat back(4SD) (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
- (6) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (7) Trunk side upper trim(5HB, WGN) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (9) Trunk side trim (passenger’s seat) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (10) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

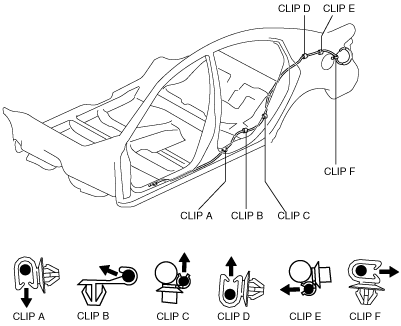

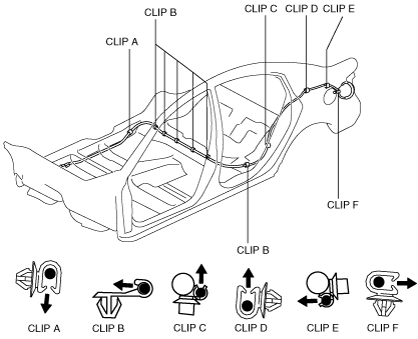

3. Remove the fuel-filler lid opener cable.
4SD
5HB
WGN
4. Install in the reverse order of removal.
