SUNROOF UNIT REMOVAL/INSTALLATION

id091500800700

Caution

•  If the sunshade is forced close while the sunroof is open, the sunshade could be damaged.

1.  Disconnect the negative battery cable.

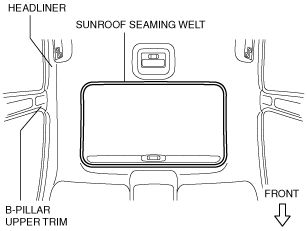

2.  Remove the sunroof seaming welt.

am6zzw00006797

3.  Remove the following parts:

(1)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(7)  Rear side seat back (4SD) (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side upper trims (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Lower anchor of the rear seat belt installation bolts (5HB) (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [4SD].)(See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)

(11)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the auto-dimming mirror connector. (Vehicles with auto-dimming mirror only)

5.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

6.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

7.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION)

8.  Disconnect the roof harness connector, remove the clip, and remove the connector.

9.  Disconnect the rear washer hose.

10.  Disconnect the front and rear drain hose from the sunroof frame.

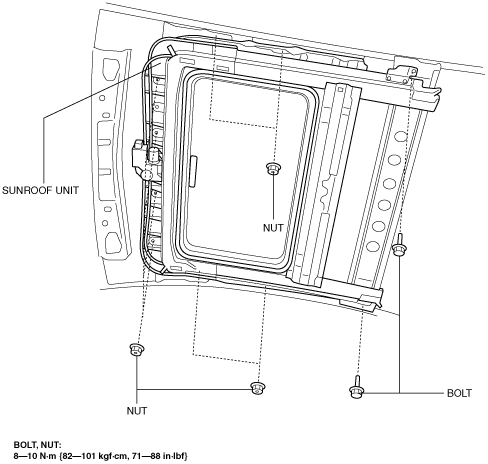

11.  Remove the bolts.

am6zzw00006360

12.  Remove the nuts, and then remove the sunroof unit.

13.  Install in the reverse order of removal.

14.  Adjust the glass panel. (See GLASS PANEL ADJUSTMENT.)
