EXTRACTOR CHAMBER REMOVAL/INSTALLATION

id091600801500

1.  Disconnect the negative battery cable.

2.  Remove the follwing parts:

(1)  Trunk mat (4SD, Wagon)

(2)  Trunk board (4SD, Wagon)

(3)  Sub-trunk (Wagon)

(4)  Trunk end trim (4SD, Wagon) (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (Wagon) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Tire house trim (Wagon) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(7)  Trunk side upper trim (Wagon) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Trunk side trim (4SD, Wagon) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(9)  Service hole cover (5HB)

(10)  Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(11)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(12)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

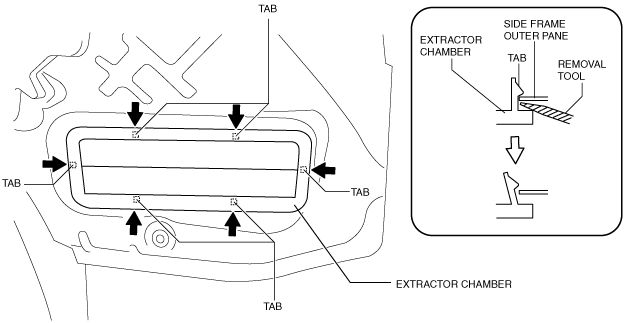

3.  Insert a removal tool in the position indicated by the arrow in the figure and detach tabs.

am6zzw00007241

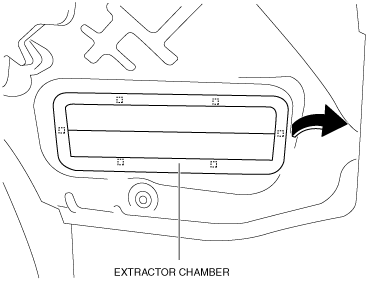

4.  Remove the extractor chamber in the direction of the arrow shown in the figure.

am6zzw00000919

5.  Install in the reverse order of removal.
