ROOF CARRIER BRACKET REMOVAL/INSTALLATION

id091600801700

4SD, 5HB

1.  Disconnect the negative battery cable.

2.  Remove the roof molding. (See ROOF MOLDING REMOVAL) (See ROOF MOLDING INSTALLATION.)

3.  Partially peel back the seaming welt.

4.  Remove the rain sensor cover. (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

5.  Disconnect the rain sensor connector. (Vehicles auto light / wiper system)

6.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(9)  Rear side seat backs (4SD) (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(10)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(11)  Trunk side upper trims (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(12)  Rear seat (5HB) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

(13)  Lower anchor of the rear seat belt installation bolt (LH) (5HB) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)

(14)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

7.  Disconnect the auto-dimming mirror connector. (vehicles with auto-dimming mirror)

8.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

9.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

10.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION)

11.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

12.  Remove the nuts.

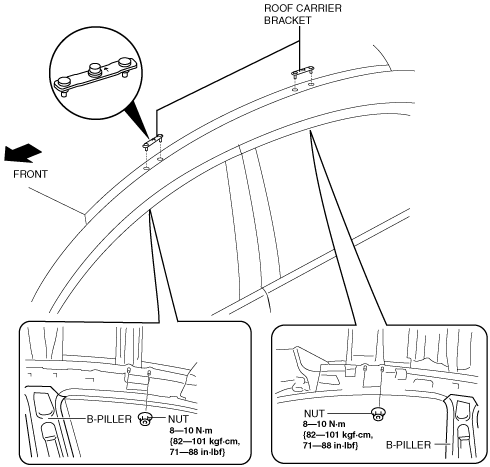

am6zzw00000771

13.  Remove the roof carrier bracket.

14.  Install in the reverse order of removal.

Note

•  Install the roof carrier bracket so that the arrow on it faces inward.

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the roof molding. (See ROOF MOLDING REMOVAL) (See ROOF MOLDING INSTALLATION.)

3.  Partially peel back the seaming welt.

4.  Remove the rain sensor cover. (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

5.  Disconnect the rain sensor connector. (Vehicles auto light / wiper system)

6.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side upper trims (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

(11)  Lower anchor of the rear seat belt installation bolt (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)

(12)  C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  D-pillar trims (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

7.  Disconnect the auto-dimming mirror connector. (vehicles with auto-dimming mirror)

8.  Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION)

9.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION)

10.  Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION)

11.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)

12.  Remove the nuts.

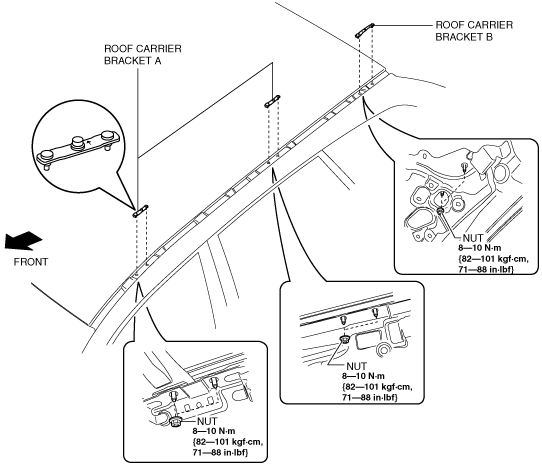

am6zzw00006757

13.  Remove the roof carrier bracket A and B.

14.  Install in the reverse order of removal.

Note

•  Install the roof carrier bracket A so that the arrow on it faces inward.
