REAR WASHER HOSE REMOVAL/INSTALLATION

id091900801600

5HB

1. Disconnect the negative battery cable.

2. Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3. Disconnect rear washer hose A from the washer tank.

am6zzw00002219

4. Remove the rear washer hose A from clip A.

5. Disconnect joint pipe A and remove rear washer hose A.

6. Remove the rear washer hose B from clip B.

7. Remove the grommet.

8. Remove the rear washer hose B from clip C, D.

9. Disconnect joint pipe B and remove rear washer hose B.

10. Partially peel back the seaming welt.

11. Remove the following parts:

(1) Sunroof seaming welt (vehicles with sunroof only)

(2) A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(10) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(11) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(13) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(14) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

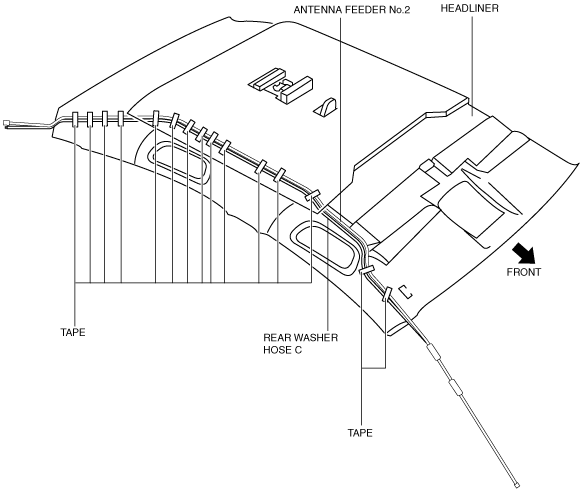

12. Peel off the tape and remove rear washer hose C.

13. Remove the rear washer hose C.

am6zzw00002220

14. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

15. Partially peel back the grommet.

am6zzw00001696

16. Remove the bracket in the direction of the arrow (2) shown in the figure while pressing the bracket tabs in the direction of the arrow (1).

am6zzw00001697

17. Remove the joint pipe D from rear washer hose E.

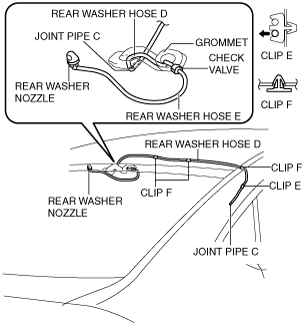

am6zzw00002221

18. Disconnect joint pipe C and remove rear washer hose D.

19. Disconnect check valve and remove rear washer hose E.

20. Remove rear washer hose E from the rear washer nozzle.

21. Install in the reverse order of removal.

Wagon
