NOISE FILTER INSPECTION
id092000806500
4SD
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
- (2) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (4) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])
- (6) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)
- (7) Noise filter (See NOISE FILTER REMOVAL/INSTALLATION.)

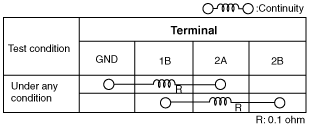

3. Verify the resistance and continuity between the noise filter terminals.
-
• If the resistance is not as indicated in the table, replace the noise filter.
5HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
- (2) Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
- (4) Noise filter (See NOISE FILTER REMOVAL/INSTALLATION.)
3. Verify the resistance and continuity between the noise filter terminals.
-
• If the resistance is not as indicated in the table, replace the noise filter.
