VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700804600

Side Ventilator Grille

Driver-side

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

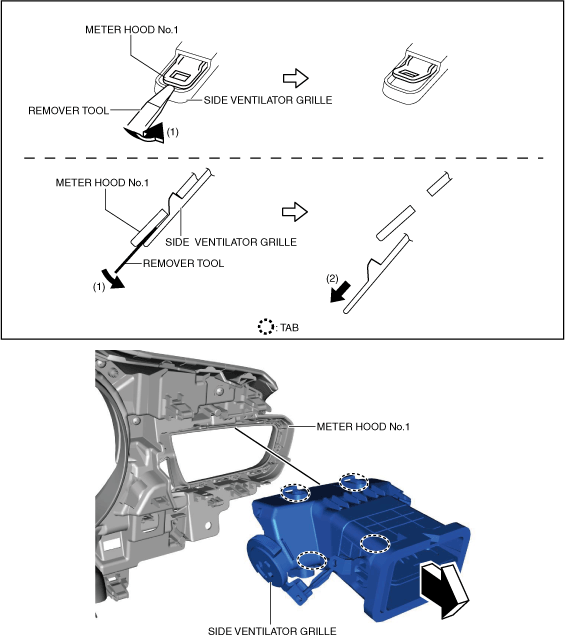

3. Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the tabs from the meter hood No.1.

am6xuw00011845

4. Install in the reverse order of removal.

Passenger-side

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

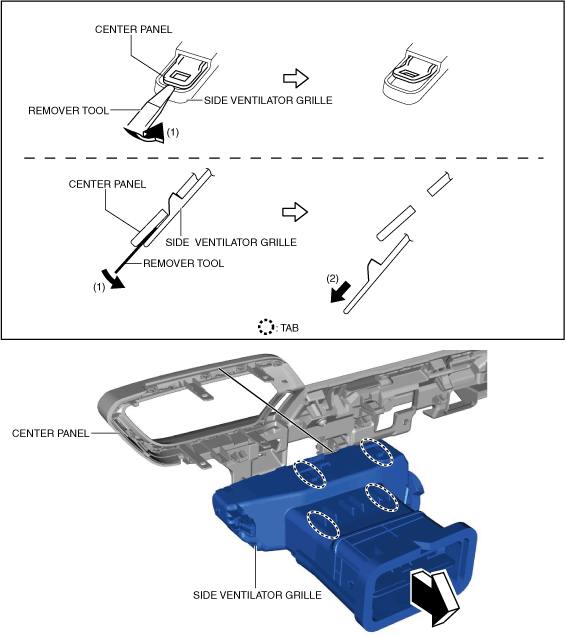

3. Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the tabs from the center panel.

am6xuw00011846

4. Install in the reverse order of removal.

Center Ventilator Grille

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

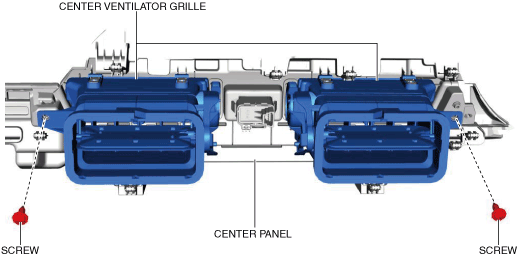

3. Remove the screws.

am6xuw00011847

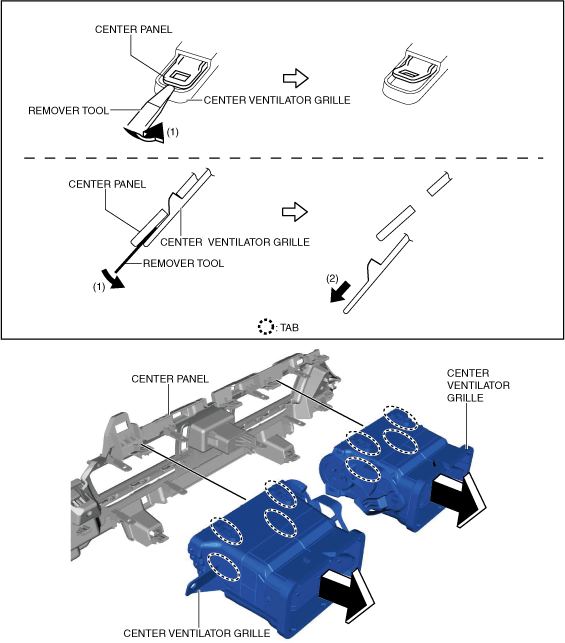

4. Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the tabs from the center panel.

am6xuw00011848

5. Install in the reverse order of removal.

Rear Ventilator Grille

1. Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION.)

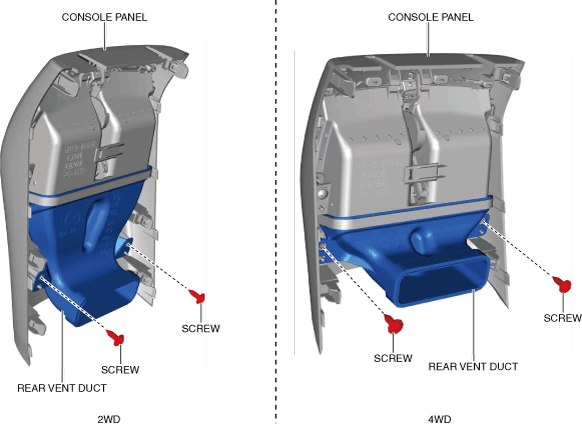

2. Remove the screws, then remove the rear vent duct. (with rear vent duct)

am6zzw00016826

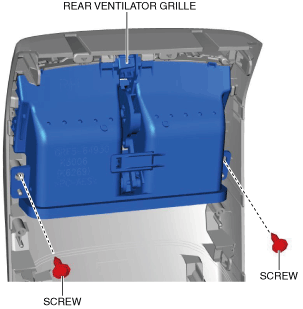

3. Remove the screws.

am6xuw00011850

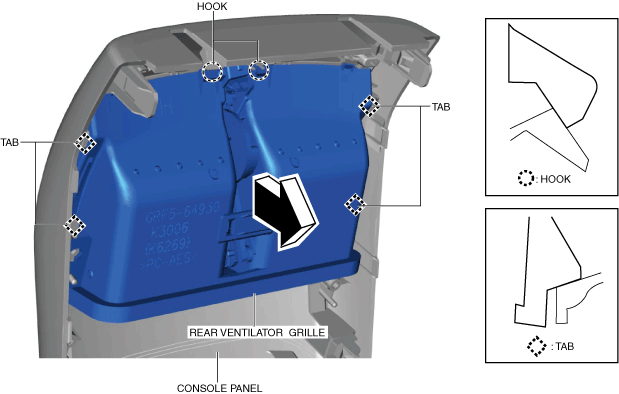

4. Remove the rear ventilator grille in the direction of arrow shown in the figure while detaching hooks and tabs.

am6xuw00011851

5. Install in the reverse order of removal.
