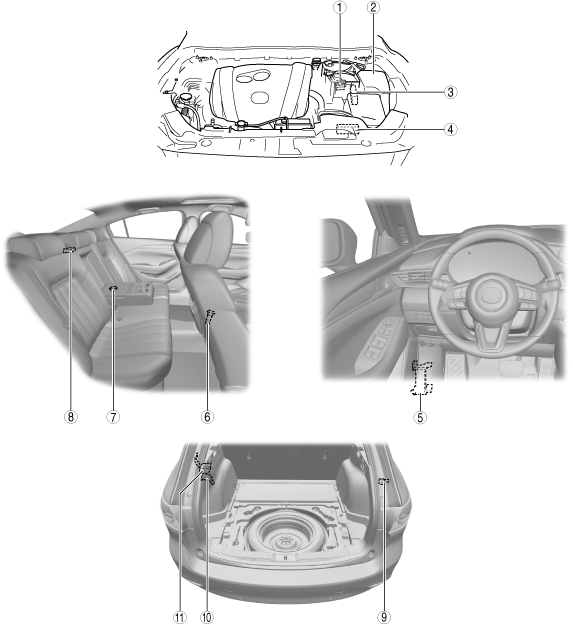

POWER SYSTEM LOCATION INDEX

id092100491000

am6zzw00016668

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION.) (See FUSE SERVICE CAUTIONS.)
2	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION.) (See RELAY AND FUSE BLOCK DISASSEMBLY/ASSEMBLY.) (See FUSE SERVICE CAUTIONS.) (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Front wiring harness protector No.2 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
4	Front wiring harness protector No.1 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
5	Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION.) (See FUSE SERVICE CAUTIONS.)
6	Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See CENTER ACCESSORY SOCKET INSPECTION.)
7	USB power outlet (See USB POWER OUTLET REMOVAL/INSTALLATION.) (See USB POWER OUTLET INSPECTION.)
8	Backup power supply (with backup power supply (4SD)) (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION.) (See BACKUP POWER SUPPLY INSPECTION.)
9	Rear accessory socket (WGN) (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See REAR ACCESSORY SOCKET INSPECTION.)
10	Backup power supply bracket (with backup power supply (WGN)) (See BACKUP POWER SUPPLY BRACKET REMOVAL/INSTALLATION.)
11	Backup power supply (with backup power supply (WGN)) (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION.) (See BACKUP POWER SUPPLY INSPECTION.)
