LIGHTING SYSTEMS LOCATION INDEX

id091800800100

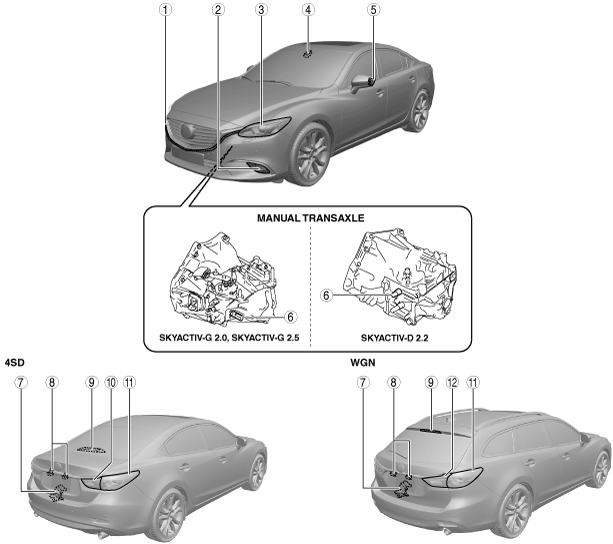

Exterior

am6zzw00012755

1	Signature wing illumination (With signature wing illumination) (See SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION.) (See SIGNATURE WING ILLUMINATION INSPECTION.) (See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION.) (See SIGNATURE WING ILLUMINATION SHORT CORD INSPECTION.)
2	Front fog light (With front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT INSPECTION [LED TYPE].) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.)
3	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT LEVELING ACTUATOR INSPECTION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
4	Auto light sensor (With auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
5	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
6	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION.)
7	Auto leveling sensor (With headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See AUTO LEVELING SENSOR INSPECTION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
10	Trunk lid light (4SD) (See TRUNK LID LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)
11	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
12	Liftgate light (WGN) (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)

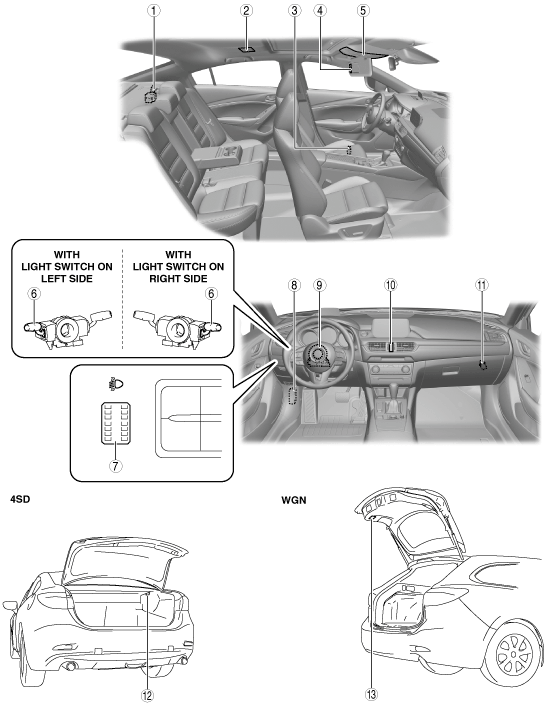

Interior

am6zzw00012756

1	Brake light unit (With smart brake support) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
2	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.) (See MAP LIGHT INSPECTION.)
3	Courtesy light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See COURTESY LIGHT BULB REMOVAL/INSTALLATION.)
4	Vanity mirror illumination (With vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
5	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.) (See MAP LIGHT INSPECTION.)
6	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
7	Headlight leveling switch (With headlight manual leveling system) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
8	Auto leveling control module (With headlight auto leveling system) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
9	Steering angle sensor (With steering angle sensor) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
10	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
11	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
12	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
13	Cargo compartment light (WGN) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
