AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES

id081000801100

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Switch the ignition to off.

4.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module and the SST (adapter wiring harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side Air Bag Module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

am6zzw00010517

3.  Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005810

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Bluetooth unit (with Bluetooth system) (See Bluetooth UNIT REMOVAL/INSTALLATION.)

2.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

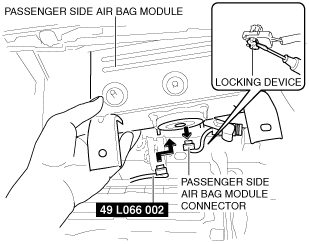

3.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am6zzw00010518

4.  Disconnect the passenger-side air bag module connector.

5.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

6.  Install the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005810

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side Air Bag Module

1.  Disconnect the front seat connector.

am3uuw00014001

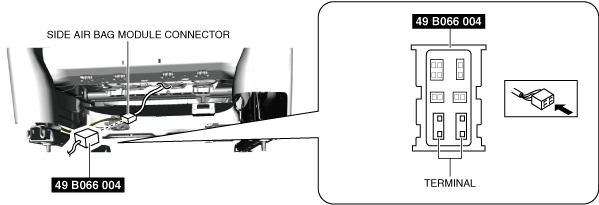

2.  Connect the SST (Adapter harness) to the front seat connector as shown in the figure.

am3zzw00018422

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac5wzw00002012

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Remove the following parts (4SD):

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(13)  Rear side seat back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
(14)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(15)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(16)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Remove the following parts (WGN):

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(13)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(14)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(15)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(16)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(17)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(18)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(19)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Peel back the headliner.

4.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am6zzw00010519

5.  Disconnect the curtain air bag module connector.

6.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005810

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am6zzw00010520

3.  Disconnect the pre-tensioner seat belt connector.

4.  Connect the SST (Adapter harness) as shown in the figure.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002032

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am3zzw00009706

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Switch the ignition to off.

3.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

4.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module and the SST (adapter wiring harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side Air Bag Module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Wrap the wiring harness (cross section 1.25 mm2{0.002 in2} or more) at least 3 times around the position shown in the figure for the driver-side air bag module.

am6zzw00010521

3.  Wrap the wire (cross section 1.25 mm2{0.002 in2} or more) at least 4 times around the position shown in the figure for the wraped wiring harness.

am6zzw00010522

4.  Connect the SST (Adapter harness) to the driver-side air bag module.

am6zzw00010523

5.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the bolt installation holes of the air bag module at least 4 times.

ac5wzw00002018

Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

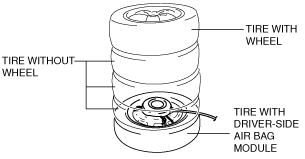

6.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

ac5wzw00002019

7.  Secure the tires with wire.

am6zzw00000966

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005814

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the driver-side air bag module.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Bluetooth unit (with Bluetooth system) (See Bluetooth UNIT REMOVAL/INSTALLATION.)

2.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

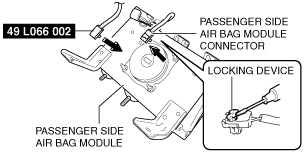

3.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am6zzw00010524

4.  Disconnect the passenger-side air bag module connector.

5.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

6.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00010525

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

7.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

am6xuw00001824

8.  Secure the tires with wire.

am6zzw00000966

9.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005816

10.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

11.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

12.  Verify that all persons are standing at least 6 m {20 ft} away from the passenger-side air bag module.

13.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

14.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side Air Bag Module

1.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
(2)  Front seat back trim and pad (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
(3)  Side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Install the nuts.

am6zzw00014826

3.  Connect the side air bag module connector to either one of the SST (Adapter harness) terminals shown in the figure.

4.  Put the side air bag module inside the tire and secure it to the tire by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt at least 4 times.

am3uuw00004240

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

5.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000372

6.  Secure the tires with wire.

am6zzw00000966

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac5wzw00002022

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the side air bag module.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Partially peel back the seaming welts.

2.  Remove the following parts (4SD):

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(13)  Rear side seat back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
(14)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(15)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(16)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(17)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
(18)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(19)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(20)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(21)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(22)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(23)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(24)  Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

3.  Remove the following parts (WGN):

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(8)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(9)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(11)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(12)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(13)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(14)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(15)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(16)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(17)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(18)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

4.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

5.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

6.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am6zzw00010527

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

7.  Disconnect the curtain air bag module connector.

am6zzw00010528

8.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

9.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am3uuw00004244

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

10.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am3uuw00004245

11.  Secure the tires with wire.

am6zzw00000966

12.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002034

13.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

14.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

15.  Verify that all persons are standing at least 6 m {20 ft} away from the curtain air bag module.

16.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

17.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Remove the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) as shown in the figure.

am6zzw00010529

4.  Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

am6zzw00000977

Warning
•  If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.

5.  Stack the tire with the pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

am2zzw00000379

6.  Secure the tires with wire.

am6zzw00000966

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002034

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the pre-tensioner seat belt.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am3zzw00009706

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
