REAR DRAIN HOSE REMOVAL/INSTALLATION
id091500443900
4SD
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (9) Cover on the front seat belt adjuster (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (13) Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
- (14) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (15) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (16) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (17) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
- (18) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (19) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (20) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (21) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (22) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (23) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (24) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
- (25) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (26) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (27) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
- (28) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (29) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

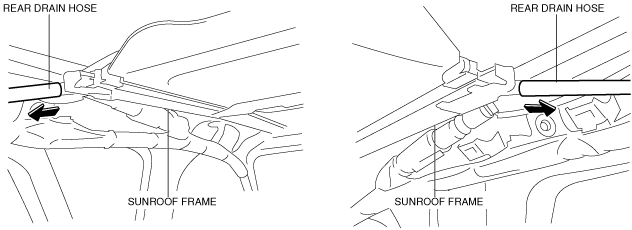

3. Disconnect the rear drain hose from the sunroof frame.

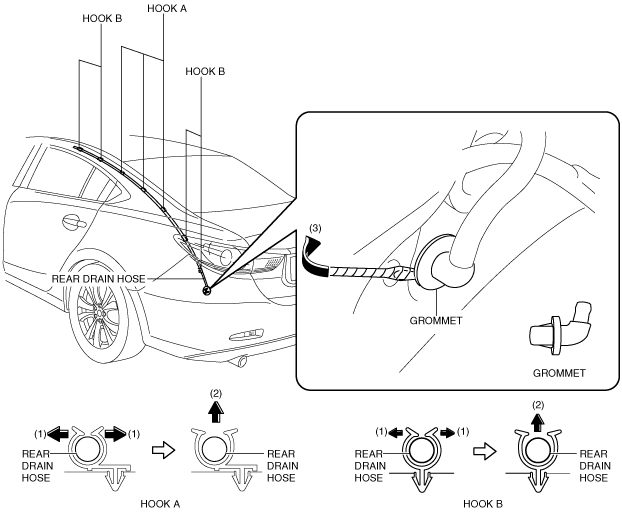

4. Pull the rear drain hose in the direction of the arrow in the order of (1), (2) shown in the figure from hooks A and hooks B.
5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow (3).
6. Remove the rear drain hose.
7. Install in the reverse order of removal.
WGN
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (9) Cover on the front seat belt adjuster (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (13) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (14) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (15) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
- (16) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (17) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (18) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (19) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
- (20) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (21) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (22) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
- (23) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (24) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (25) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (26) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
3. Disconnect the front drain hose from the sunroof frame.
4. Pull the rear drain hose in the direction of the arrow in the order of (1), (2) shown in the figure from hooks A, hooks B, hooks C, hooks D.
5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow (3).
6. Remove the rear drain hose.
7. Install in the reverse order of removal.
