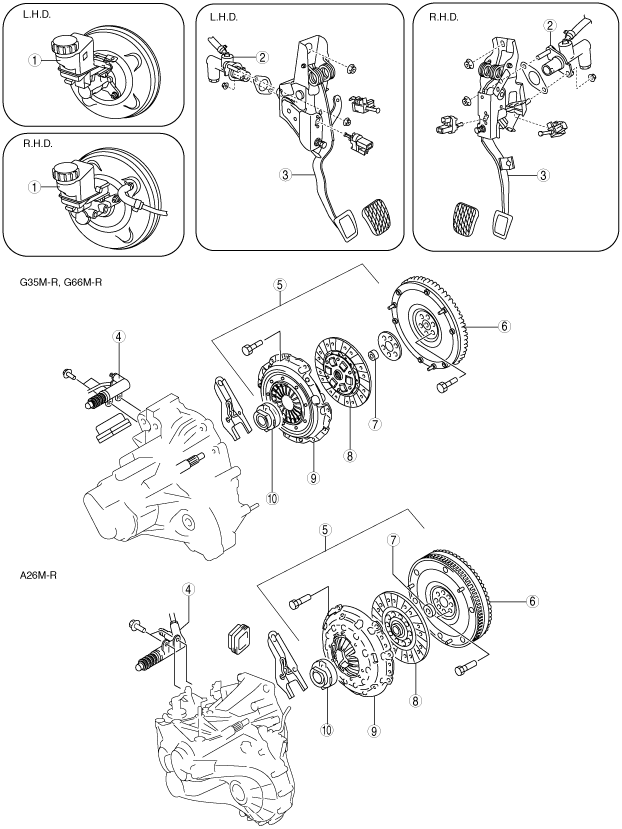

CLUTCH LOCATION INDEX [L8, LF, L5, MZR-CD (RF Turbo)]

id0510008004e5

am6zzw00004620

1	Reservoir tank (See CLUTCH FLUID INSPECTION.) (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT.)
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [L8, LF, L5, MZR-CD (RF Turbo)].) (See CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY.)
3	Clutch pedal (See CLUTCH PEDAL INSPECTION/ADJUSTMENT [L8, LF, L5, MZR-CD (RF Turbo)].) (See CLUTCH PEDAL REMOVAL/INSTALLATION [L8, LF, L5, MZR-CD (RF Turbo)].)
4	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [L8, LF, L5, MZR-CD (RF Turbo)].) (See CLUTCH RELEASE CYLINDER DISASSEMBLY/ASSEMBLY.)
5	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [L8, LF, L5].) (See CLUTCH UNIT REMOVAL/INSTALLATION [MZR-CD (RF Turbo), MZR-CD 2.2].)
6	Flywheel (See FLYWHEEL INSPECTION.)
7	Pilot bearing (See PILOT BEARING INSPECTION.)
8	Clutch disc (See CLUTCH DISC INSPECTION.)
9	Clutch cover (See CLUTCH COVER INSPECTION.)
10	Clutch release collar (See CLUTCH RELEASE COLLAR INSPECTION.)
