ENGINE FRONT COVER REMOVAL/INSTALLATION[AJ (3.0L Duratec)]
id0110a3802800
1. Disconnect the negative battery cable.
2. Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
3. Remove the front oil seal. (See FRONT OIL SEAL REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
4. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
5. Remove the LH and RH cylinder head cover. (See CYLINDER HEAD COVER (LH) REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See CYLINDER HEAD COVER (RH) REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
6. Remove the No.3 engine mount. (See No.3 ENGINE MOUNT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
7. Remove the power steering oil pump and bracket with the power steering pressure line connected, and fix the power steering oil pump using a rope to prevent it from falling. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
atraaw00000994
|
|
1
|
Drive belt auto tensioner
|
|
2
|
CMP sensor connector
|
|
3
|
CKP sensor connector
|
|
4
|
Front cover bracket
|
|
5
|
Engine front cover
|
|
6
|
Gasket
|
Engine Front Cover Removal Note

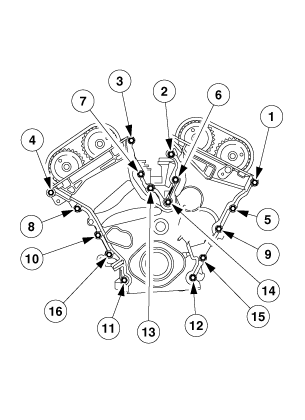

1. Remove the engine front cover bolts and studs in the order shown.
atraaw00002935
|
Engine Front Cover Installation Note
1. Apply a 6 mm {0.24 in} diameter dot of Silicone Gasket to the cylinder block, lower cylinder block, and cylinder head mating surfaces.
atraaw00000015
|

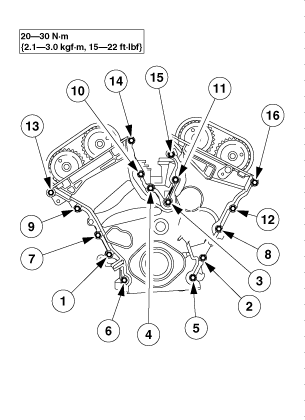

2. Position the cover and install the studs and bolts in the sequence shown.
atraaw00000016
|
