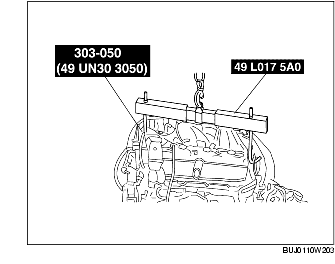

1. Install the SST to the cylinder head (RH) at the position shown in the figure using the bolt (part number 9XG0 16 27X1, or a M12X1.75 bolt with a nominal length of 33 mm {1.3 in}.)
2. Install with the transaxle on the crossmember.

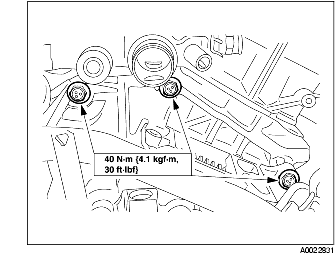

3. Install the five bolts to the transaxle.

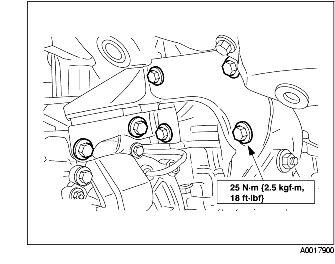

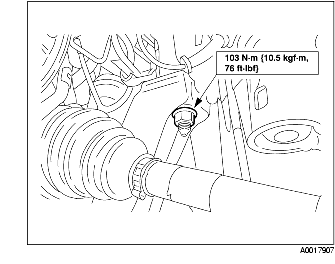

4. Position the jointshaft bracket and install the bolts.
5. Install a new gasket and the RH exhaust manifold.

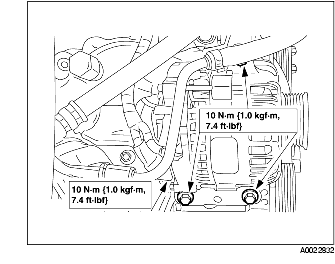

6. Install the generator.
7. Connect the EGR tube and the HO2S electrical connector.

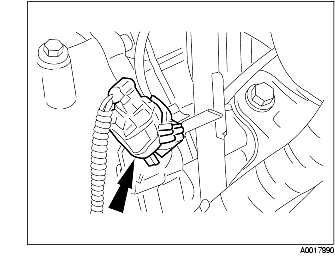

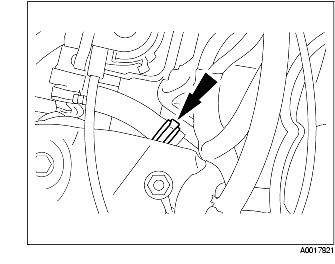

8. Connect the output shaft speed sensor electrical connector.
9. Connect the knock sensor jumper electrical connector.

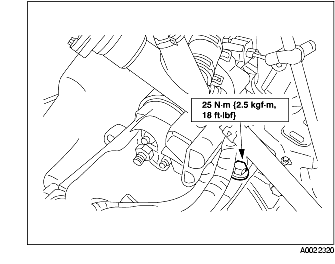

10. Install the starter.

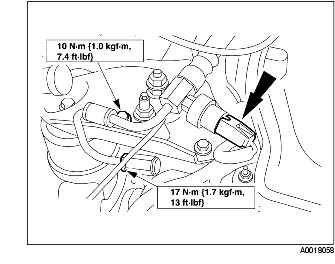

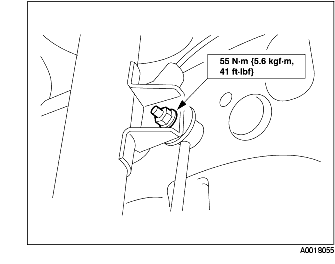

11. Install the bolt and connect the transaxle control harness to the bracket.
12. Connect the transaxle harness.

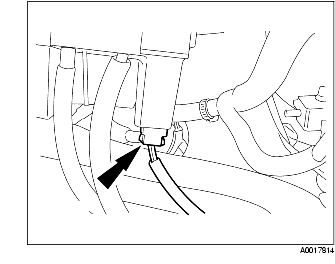

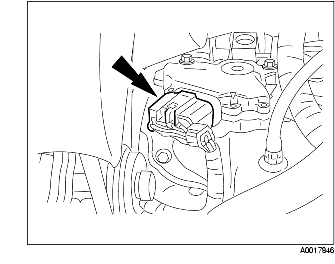

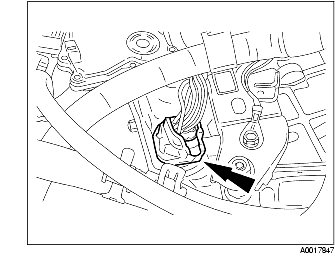

13. Connect the transaxle range switch.

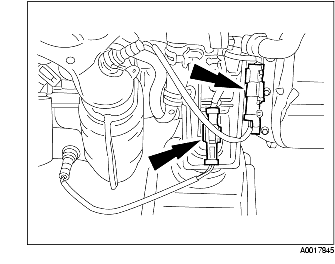

14. Connect the HO2S sensors.
15. Position the engine and transaxle on a suitable lift.
16. Install the engine and transaxle in the vehicle.
17. Install the four bolts to the engine mount member.

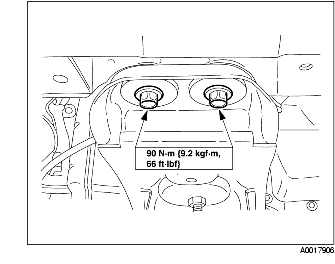

18. Install the two front crossmember nuts.
19. Install the two front crossmember bolts.

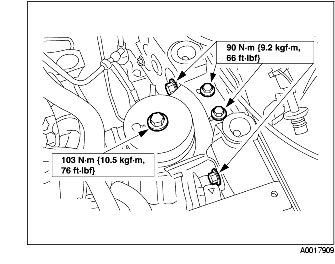

20. Position the No.4 engine mount rubber and install the bolts.

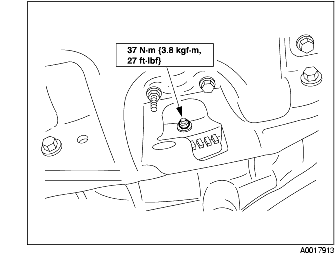

21. Install No.3 engine mount bracket, bolts and nuts.
22. Remove the lift.
23. Install the four bolts.
24. Install the four torque converter nuts.
25. Install the inspection plug.

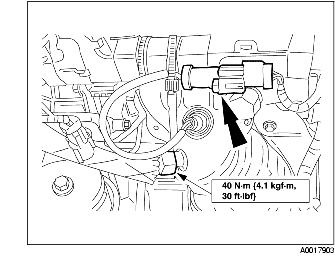

26. Connect the two transaxle cooler lines.

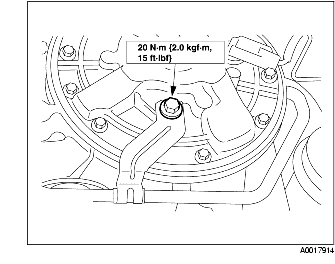

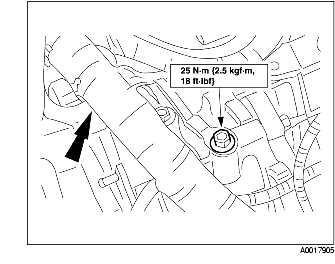

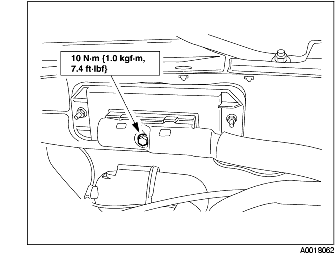

27. Install the cooler line bracket bolt.

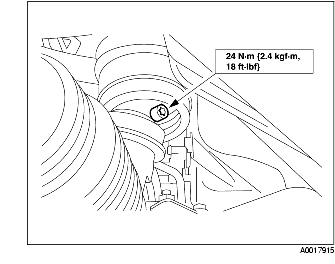

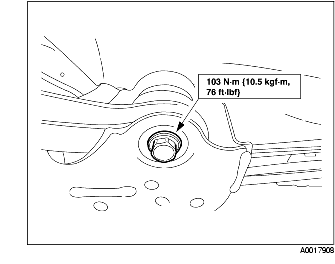

28. Install the bolt between the steering shaft and steering gear.

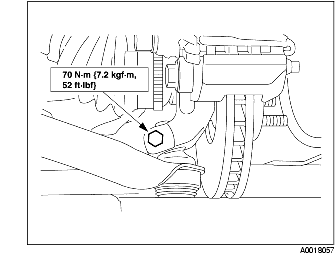

29. Connect the LH and RH struts to the steering knuckles and install the bolts.

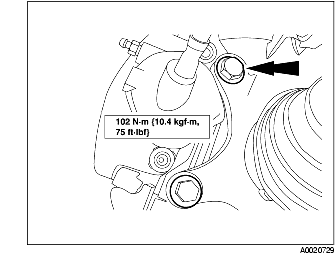

30. Install the brake calipers to the steering knuckle.

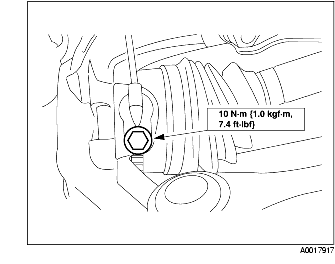

31. Position the LH and RH ABS wheel speed sensors and install the bolts.
32. Connect the LH and RH stabilizer control link to the shock absorber.
33. Connect the LH and RH tie rods to the steering knuckle.

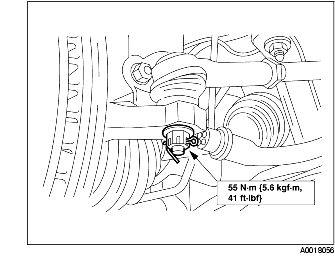

34. Connect the LH and RH ball joints.
35. Install the propeller shaft. (4WD)(See PROPELLER SHAFT REMOVAL/INSTALLATION.)
36. Install both front wheel and tire assemblies. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
37. Install the A/C compressor.
38. Install the three-way catalytic converter. (See CATALYTIC CONVERTER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
39. Install the front tube. (See FRONT PIPE REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
40. Install the lower radiator air deflectors.
41. Lower the vehicle.

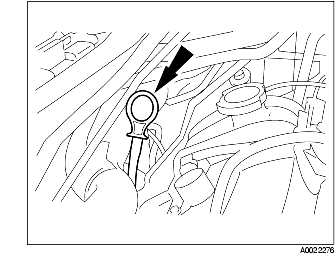

42. Install the oil level indicator.
43. Connect the power steering line.
44. Connect the power steering return line.

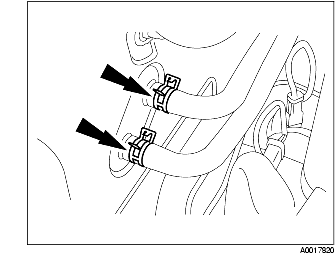

45. Connect the heater hoses.

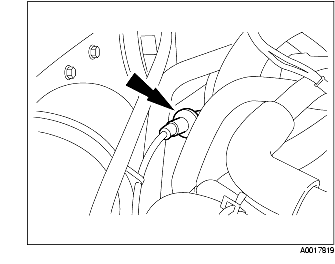

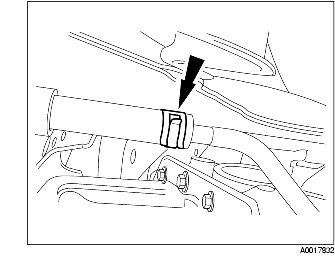

46. Connect the vacuum line.

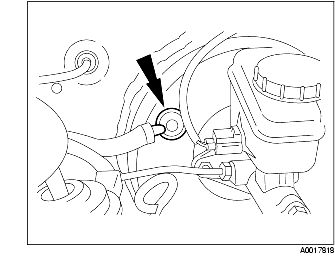

47. Connect the brake booster vacuum hose.
48. Connect the transaxle linkage.

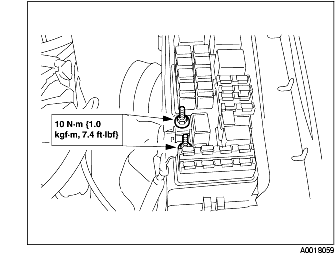

49. Install the cables and the nuts.

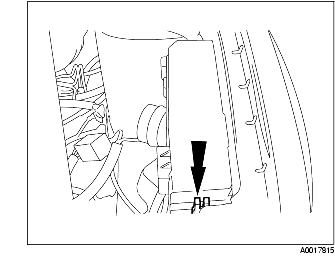

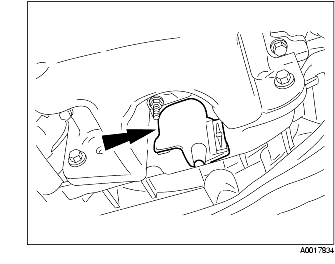

50. Install the BJB cover.
51. Connect the connector to the BJB.

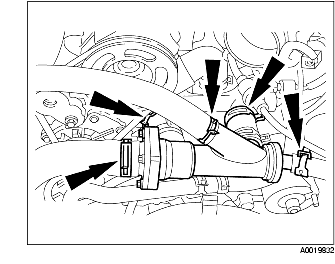

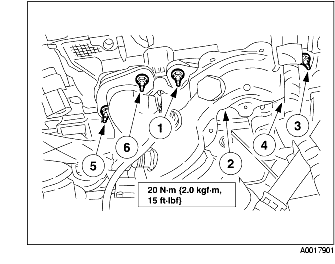

52. Position the thermostat housing and connect the five hoses.

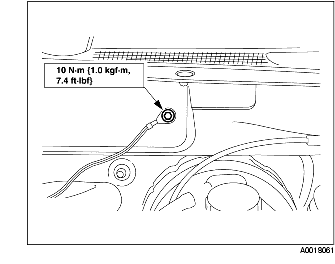

53. Connect the ground wire.
54. Connect the powertrain control module (PCM) electrical connector.
55. Connect the purge solenoid valve connector.
56. Connect the accelerator cable.
57. Connect the fuel line. (See BEFORE SERVICE PRECAUTION [AJ (3.0L Duratec)].)
58. Install the air cleaner outlet tube and air cleaner. (See AIR CLEANER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
59. Install the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [L3, AJ (3.0L Duratec)].)
60. Install the water pump drive belt. (See DRIVE BELT REPLACEMENT [AJ (3.0L Duratec)].)
61. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [AJ (3.0L Duratec)].)
62. Refill the crankcase with oil.
