ABS HU REMOVAL/INSTALLATION

Warning

• Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

Caution

• Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If brake fluid is spilled, wipe it off immediately.

1. Disconnect the negative battery cable.

2. Remove the air cleaner and air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3].) (See. AIR CLEANER REMOVAL/INSTALLATION [YF (2.0L Zetec)].) (See AIR HOSE REMOVAL/INSTALLATION [YF (2.0L Zetec)].) (See AIR CLEANER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].) (See AIR HOSE REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

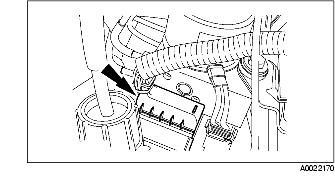

3. Remove the ABS connector.

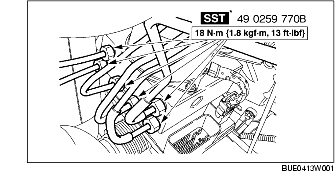

4. Disconnect the brake pipes.

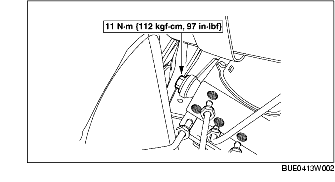

5. Remove the bolt.

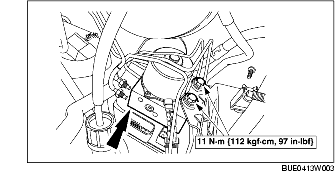

6. Remove the bolt and the ABS HU.

7. Remove the screws and the ABS CM.

8. Install in the reverse order of removal.

9. After installation, bleed the brake system. (See AIR BLEEDING (BRAKE SYSTEM).)
