Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Bulletins and or/on-line repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT SELECTOR LEVER CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch to the LOCK position.
• Inspect selector lever connector connection.
• Disconnect the selector lever connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
||
|
4
|
INSPECT POWER SUPPLY CIRCUIT
• Turn the ignition switch to the ON position (engine off).
• Inspect voltage at O/D OFF switch terminal A (wiring harness-side).
• Is the voltage approx. 12 V?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the ignition switch and wiring harness, then go to Step 10.
(See IGNITION SWITCH INSPECTION.)
|
||
|
5
|
INSPECT O/D OFF SWITCH
• Turn the ignition switch to the LOCK position.
• Inspect the O/D OFF switch.
• Is O/D OFF switch normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the selector lever, then go to Step 10.
|
||
|
6
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace connector and/or terminals, then go to Step 10.
|
||
|
7
|

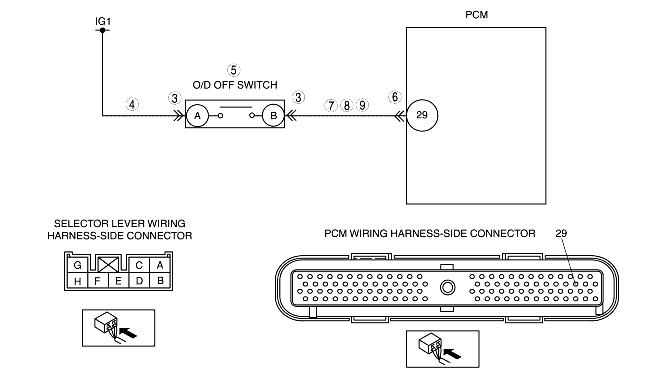

INSPECT O/D OFF SWITCH CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between PCM terminal 29 (wiring harness-side) and O/D OFF switch terminal B (wiring harness-side).
• Is there continuity between terminals?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness, then go to Step 10.
|
||
|
8
|
INSPECT O/D OFF SWITCH CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch to the LOCK position.
• Inspect continuity between O/D OFF switch terminal B (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to the Step 10.
|
|
No
|
Go to the next step.
|
||
|
9
|
INSPECT O/D OFF SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (engine off).
• Inspect voltage at O/D OFF switch terminal B (wiring harness-side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness, then go to the next step.
|
||
|
10
|
VERIFY TROUBLESHOOTING OF DTC P1780 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from memory using the WDS or equivalent.
• Perform the "After Repair Procedure".
• Are any DTCs present?
|
Yes
|
Replace the PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
11
|
VERIFY DTCS
• Are except DTC P1780 output?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [LA4AX-EL (CD4E)].)
|
|
No
|
DTC troubleshooting completed.
|
||
