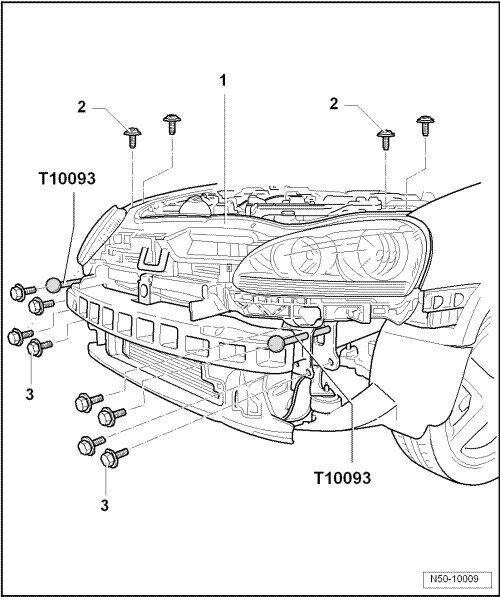

Lock Carrier Service Position Assembly Overview
Lock Carrier Service Position Assembly Overview 1 Lock carrier with attachments •
Removing and Installing => [ Lock Carrier with Attachments ]
Removal and Replacement •
Service position => [ Lock Carrier Service Position ]
Lock Carrier Service Position 2 Bolt •
Qty. 4
•
8 Nm
3 Bolt •
Qty. 8
•
60 Nm
