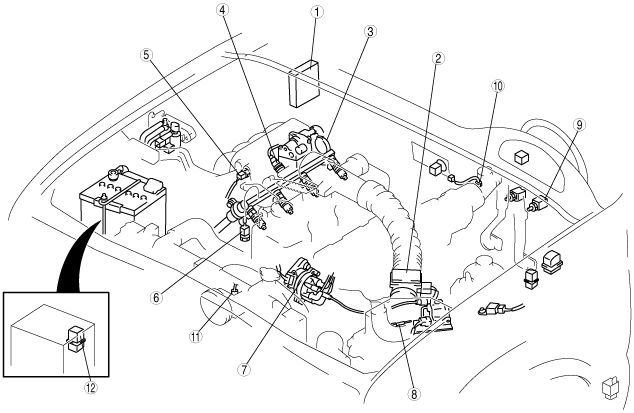

CONTROL SYSTEM LOCATION INDEX [G6]

id014095804100

arnffw00001434

1	PCM (See PCM REMOVAL/INSTALLATION [G6].) (See PCM INSPECTION [G6].)
2	MAF sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [G6].)
3	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [G6].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [G6].) (See THROTTLE POSITION (TP) SENSOR ADJUSTMENT [G6].)
4	CTP switch (See CLOSED THROTTLE POSITION (CTP) SWITCH INSPECTION [G6].)
5	IAT sensor (See INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [G6].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [G6].)
6	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [G6].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [G6].)
7	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [G6].)
8	O2S (See OXYGEN SENSOR (O2S) INSPECTION [G6].) (See OXYGEN SENSOR (O2S) REMOVAL/INSTALLATION [G6].)
9	Clutch switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [G6].)
10	Neutral switch (See NEUTRAL SWITCH INSPECTION [G6].)
11	PSP switch (See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [G6].)
12	Main relay (See MAIN RELAY INSPECTION [G6].) (See MAIN RELAY REMOVAL/INSTALLATION [G6].)
