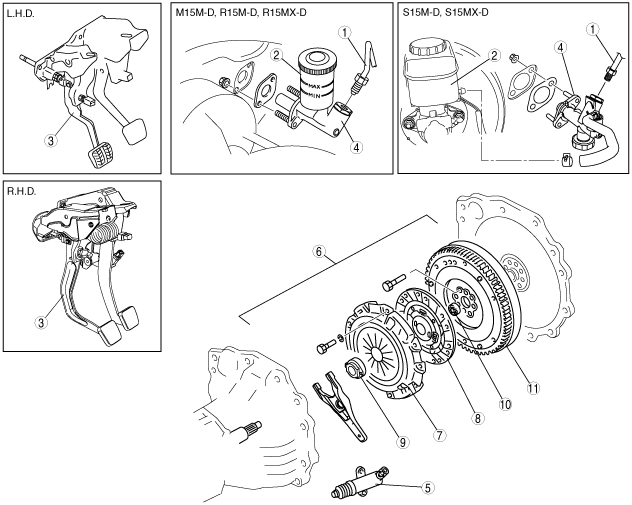

CLUTCH LOCATION INDEX

id051000800400

absggw00001239

1	Clutch pipe (See GENERAL PROCEDURES (CLUTCH).)
2	Brake fluid reservoir tank (See CLUTCH FLUID INSPECTION.) (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT.)
3	Clutch pedal (See CLUTCH PEDAL ADJUSTMENT.) (See CLUTCH PEDAL REMOVAL/INSTALLATION.)
4	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.) (See CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY.)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.) (See CLUTCH RELEASE CYLINDER DISASSEMBLY/ASSEMBLY.)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [M15M-D, R15M-D, R15MX-D].) (See CLUTCH UNIT REMOVAL/INSTALLATION [S15M-D, S15MX-D].)
7	Clutch cover (See CLUTCH COVER INSPECTION.)
8	Clutch disc (See CLUTCH DISC INSPECTION.)
9	Clutch release collar (See CLUTCH RELEASE COLLAR INSPECTION.)
10	Pilot bearing (See PILOT BEARING INSPECTION.)
11	Flywheel [M15M-D, R15M-D, R15MX-D] or dual-mass flywheel [S15M-D, S15MX-D] (See FLYWHEEL INSPECTION [M15M-D, R15M-D, R15MX-D].) (See DUAL-MASS FLYWHEEL INSPECTION [S15M-D, S15MX-D].)
