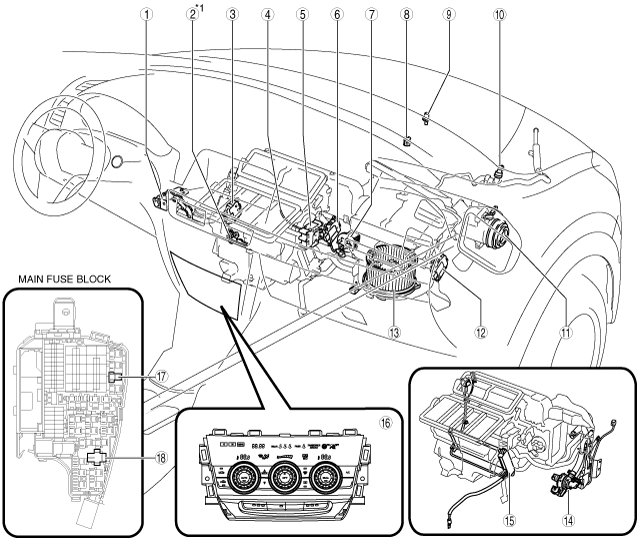

HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

L.H.D.

ac5wzw00007152

1
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
2*1
Heater core temperature sensor (with heater core temperature sensor)
(See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
3
Driver-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Passenger-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Water pump (with water pump)
(See WATER PUMP REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See WATER PUMP INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
PTC heater (with PTC heater)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
18
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)

*1  :Applied VIN (assumed): JMZ KE19760# 100001—200006, JMZ KE19780# 100001—200006, JMZ KE89380# 200001—200006, JMZ KE89780# 100001—200006, JMZ KEK9760# 100001—20000, JMZ KEK9780# 100001—200006, JM8 KE2W7**# 100001—202826, JM8 KE4W2**# 200001—202826, JM8 KE4W3**# 200001—202826, JM8 KE4W7**# 100001—202826, JMZ KEC978Z# 100001—202826, JMZ KEK928Z# 200001—202826, JMZ KEK938Z# 200001—202826, JMZ KEK978Z# 100001—202826, KE1071 100001—202826

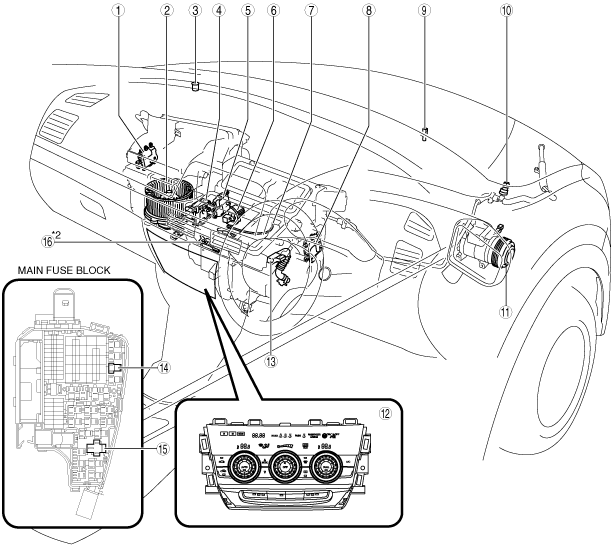

R.H.D.

ac5wzw00007153

1
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
2
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
3
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5
Passenger-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Driver-side air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
15
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
16*2
Heater core temperature sensor (with heater core temperature sensor)
(See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

*2  :Applied VIN (assumed): JMZ KEC9760# 100001—158744, JMZ KEF9160# 100001—158744, JMZ KEF9180# 100001—158744, JMZ KEN9160# 100001—158744, JMZ KEN9180# 100001—158744, JMZ KEN9260# 100001—58744, JMZ KEN9280# 100001—158744, JM0 KE102100 100001—200053, JM0 KE103100 200001—200053, JM0 KE107100 100001—200053, JM6 KE1021*0 200001—202818, JM6 KE1031*0 200001—202818, JM6 KE1071*0 100001—202818
