EMISSION SYSTEM [SKYACTIV-D 2.2]

id0116e1110100


Outline

•  Diesel particulate elimination equipment (Diesel Particulate Filter (DPF) has been adopted which eliminates PM from the exhaust gas.

Structural View


Engine compartment side

ac5wzn00002250

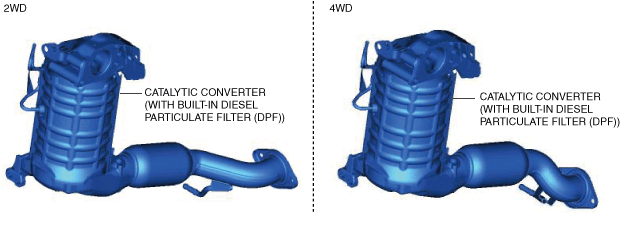

Exhaust system side

ac5wzn00003882


Fuel tank side

2WD

ac5wzn00004030

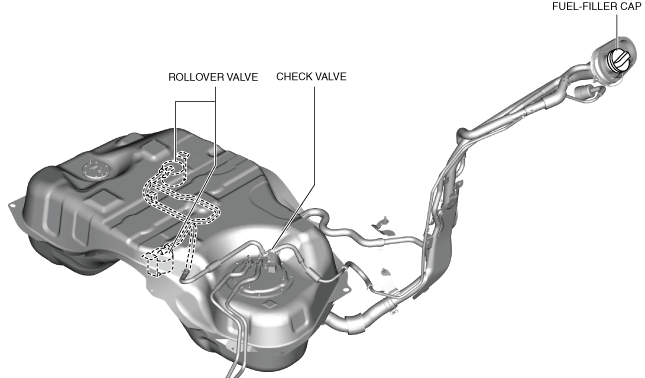

4WD

ac5wzn00004031


SCR system side

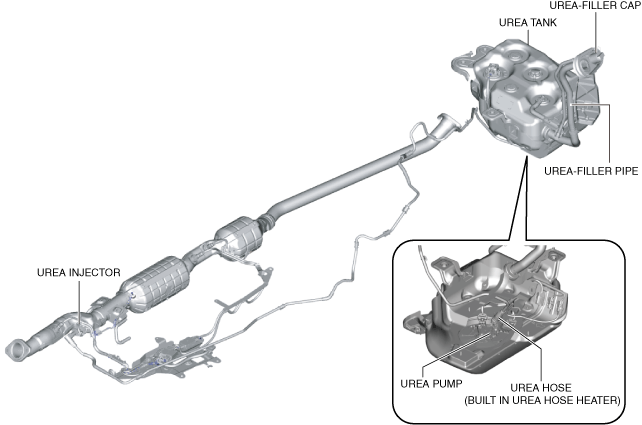

2WD

ac5wzn00005076

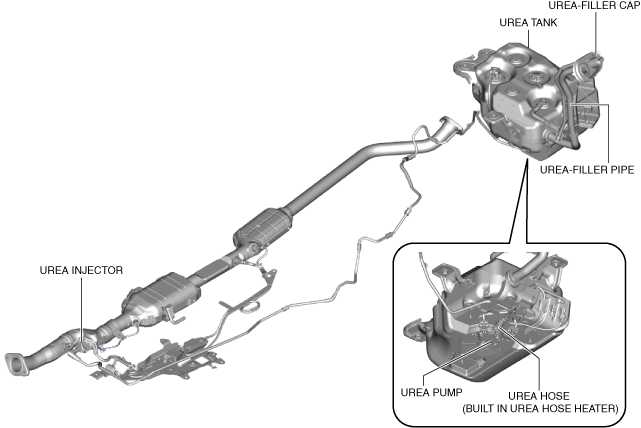

4WD

ac5wzn00005077


System Diagram

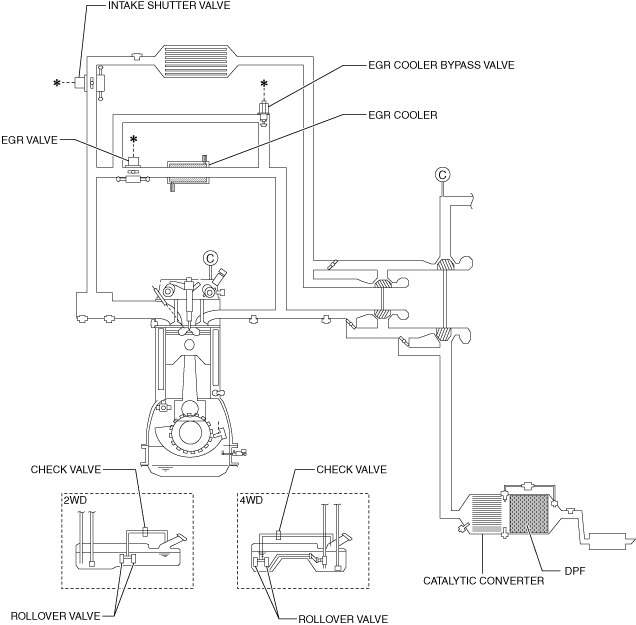

Fuel injector (2pin type)

ac5wzn00002255

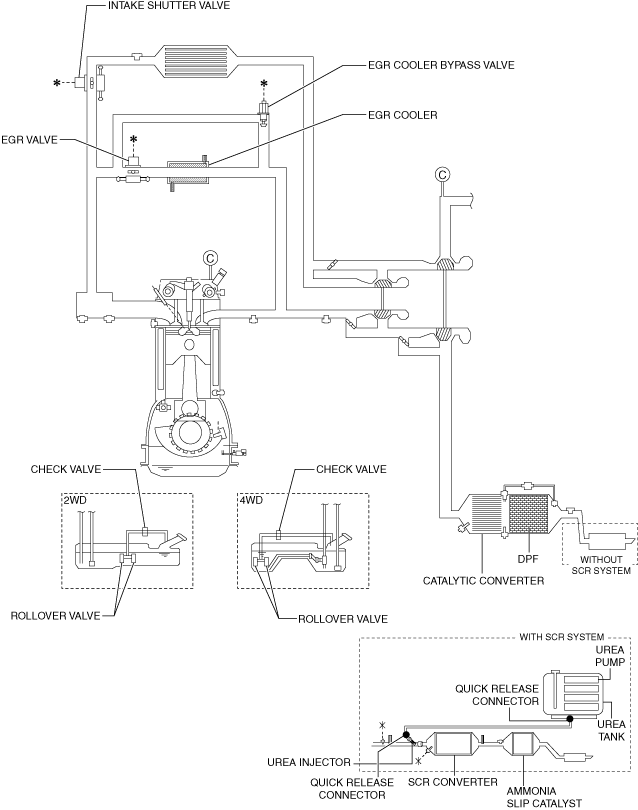

Fuel injector (6pin type)

ac5wzn00005090

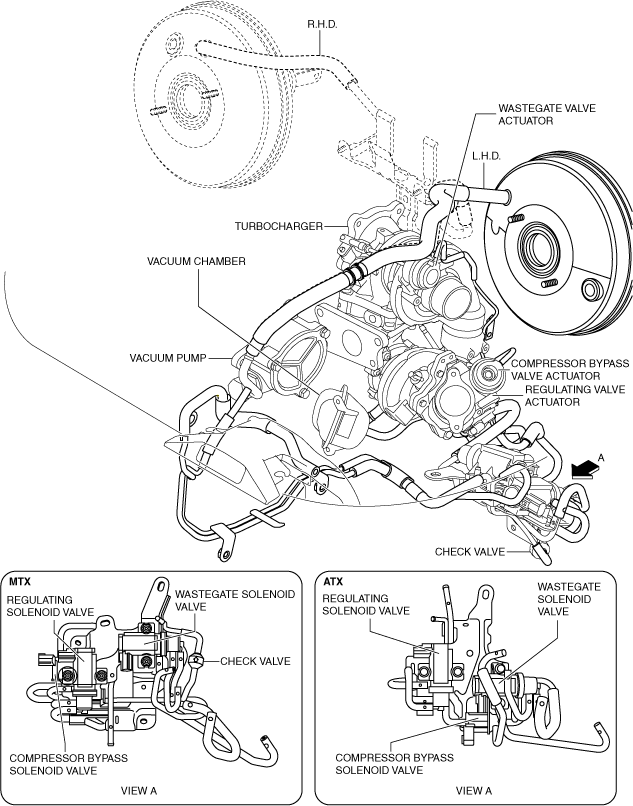

Vacuum Hose Routing Diagram

ac5wzn00002894

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 2.2].)
Catalytic converter
(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)
Exhaust gas recirculation system
(See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-D 2.2].)
EGR valve
(See EGR VALVE [SKYACTIV-D 2.2].)
EGR cooler
(See EGR COOLER [SKYACTIV-D 2.2].)
EGR cooler bypass valve
(See EGR COOLER BYPASS VALVE [SKYACTIV-D 2.2].)
Fuel-filler cap
(See FUEL-FILLER CAP [SKYACTIV-D 2.2].)
Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 2.2].)
Check valve
(See CHECK VALVE [SKYACTIV-D 2.2].)
Diesel particulate filter (DPF)
(See DIESEL PARTICULATE FILTER [SKYACTIV-D 2.2].)
Intake shutter valve
(See INTAKE SHUTTER VALVE [SKYACTIV-D 2.2].)
Urea tank
(See UREA TANK [SKYACTIV-D 2.2].)
Urea pump
(See UREA PUMP [SKYACTIV-D 2.2].)
Urea injector
(See UREA INJECTOR [SKYACTIV-D 2.2].)
Urea-filler cap
(See UREA-FILLER CAP [SKYACTIV-D 2.2].)
SCR converter
(See SCR CONVERTER [SKYACTIV-D 2.2].)
Ammonia slip catalyst
SCR relay
(See SCR RELAY [SKYACTIV-D 2.2].)
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-D 2.2].)
