POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.]

id041100801850

Replacement Part

Oil and Chemical Type

Caution

•  Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or performing any procedure that changes the pedal stroke.

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Note

•  Tighten the brake pipe flare nut using any commercially available flare nut wrench.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(4)  Keyless beeper (With advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(5)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

4.  Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].)

5.  Remove the power brake unit vacuum sensor. (With i-stop) (See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION [L.H.D.].)

6.  For SKYACTIV-G 2.5T vehicles, remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  Air hose

•  Air cleaner cover

•  Air cleaner element

•  Fresh-air duct

•  Air cleaner case

•  Air inlet pipe

7.  For SKYACTIV-D 2.2 vehicles, remove the following parts:

•  Air inlet pipe (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

•  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

10.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)

11.  Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)

12.  Inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

13.  Install a new brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)

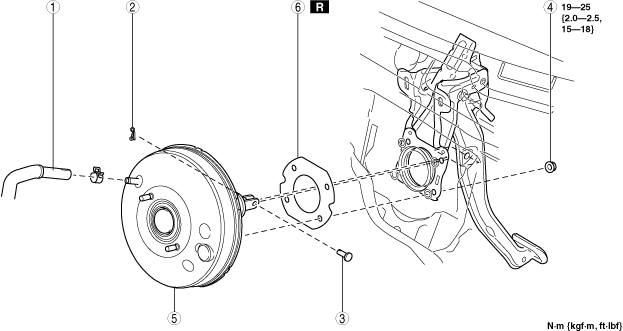

ac5uuw00007499

1	Vacuum hose (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5T)].) (See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-D 2.2)].)
2	Snap pin
3	Clevis pin
4	Nut
5	Power brake unit
6	Gasket
