BACKUP POWER SUPPLY BRACKET REMOVAL/INSTALLATION

id092100909100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Tonneau cover (See TONNEAU COVER REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)

(4)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Rear seat belt retractor (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(10)  Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION.)

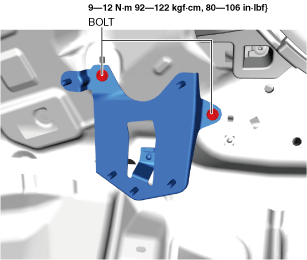

3.  Remove the bolts.

ac5wzw00010712

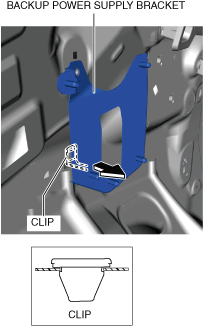

4.  Pull the backup power supply bracket in the direction of the arrow shown in the figure and detach the clip from the body.

ac5wzw00010713

5.  Remove the backup power supply bracket.

6.  Install in the reverse order of removal.
