VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700804600

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Driver’s Side

1.  Remove the following parts:

(1)  A-pillar lower trim (driver’s side) (See A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(2)  A-pillar trim (driver’s side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(7)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(8)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(9)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(10)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(11)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(12)  Dash board garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

2.  Remove the screws.

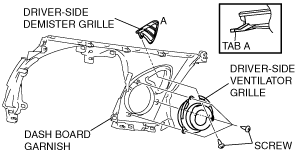

L.H.D.

acxuuw00000879

R.H.D.

acxaaw00000091

3.  Remove the ventilator grille.

4.  Remove the tab A.

5.  Remove the demister grille.

6.  Install in the reverse order of removal.

Passenger’s Side

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  A-pillar lower trim (passenger's side) (See A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(2)  A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(7)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(8)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(9)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(10)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the screws A.

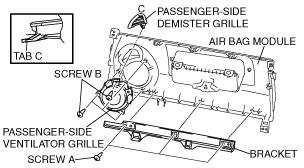

L.H.D.

acxuuw00000880

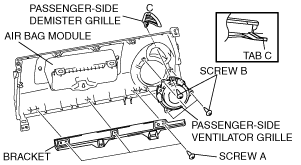

R.H.D.

acxaaw00000092

4.  Remove the bracket.

5.  Remove the screws B.

6.  Remove the ventilator grille.

7.  Remove the tab C.

8.  Remove the demister grille.

9.  Install in the reverse order of removal.

Center

1.  Remove the following parts:

(1)  Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(4)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

2.  Remove the screws.

acxuuw00000881

3.  Remove the ventilator grille.

4.  Install in the reverse order of removal.
