POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION

id071100010300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(7)  Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)

(8)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(9)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(10)  Selector lever bracket (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

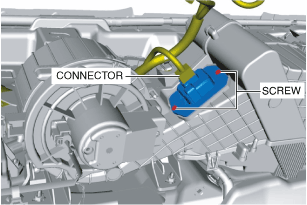

3.  Disconnect the connector.

ac9uuw00007492

4.  Remove the screws.

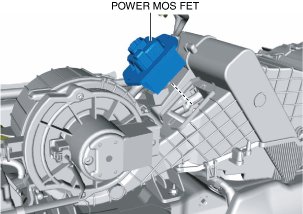

5.  Remove the power MOS FET.

ac9uuw00007493

6.  Install in the reverse order of removal.
