REAR HEAT DUCT No.2 REMOVAL/INSTALLATION
id071100010600
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) second-row seat (LH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
-
- (2) second-row seat (RH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
-
- (3) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (4) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (6) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (7) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (8) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (9) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (10) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (11) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-

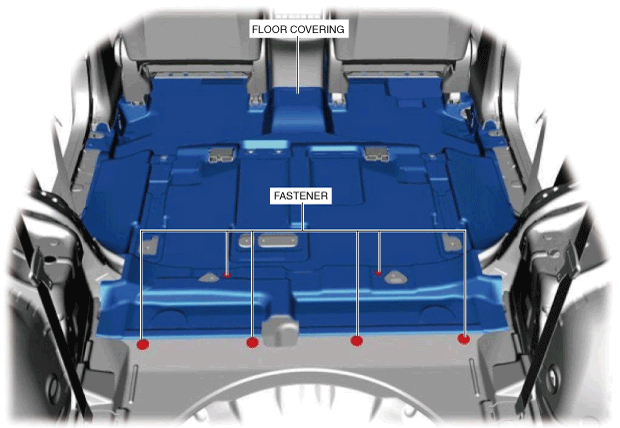

3. Remove the fasteners.

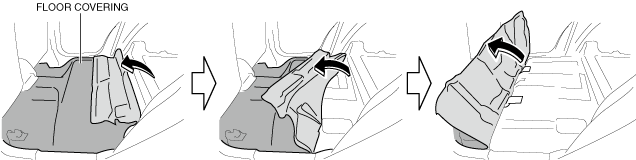

4. Turn the floor covering over.

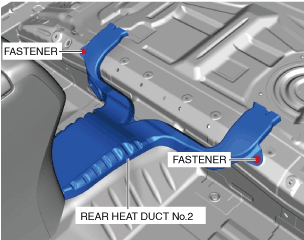

5. Remove the fasteners.

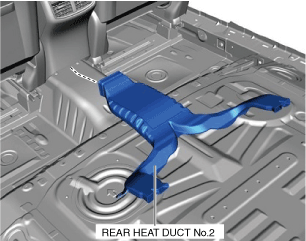

6. Remove the rear heat duct No.2.
7. Install in the reverse order of removal.
