REAR AIRFLOW MODE ACTUATOR INSPECTION

id074000804700

1. Slide the front seat (RH) forward.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6) Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(7) Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)

(8) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

4. Remove the rear airflow mode actuator. (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)

5. Apply battery positive voltage and connect the ground to the rear airflow mode actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

D

E

HEAT → VENT

E

D

VENT → HEAT

B+ Terminal	Ground Terminal	Operation
D	E	HEAT → VENT
E	D	VENT → HEAT

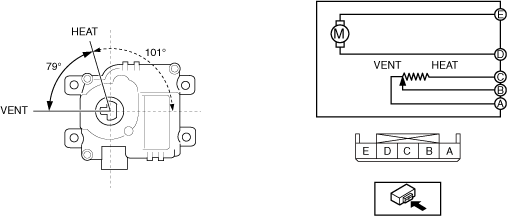

ac9wzw00005021

6. Verify that the resistance between terminals A and B, B and C matches the rear airflow mode actuator operation as shown in the graph.

ac8wzw00001154

• If the operation condition and resistance are not normal, replace the rear airflow mode actuator. (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)
