REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION
id074000806000
1. Slide the front seat (RH) forward.
2. Slide the front seat (RH) rearward approx. 50 mm {2.0 in}.
3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
4. Remove the following parts:
- (1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (3) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (4) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (5) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (6) Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)
-
- (7) Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)
-
- (8) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-

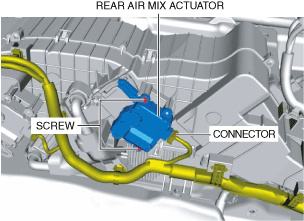

5. Disconnect the connector.
6. Remove the screws.
7. Remove the rear air mix actuator.
8. Install in the reverse order of removal.
