DTC B10FD:11/B10FD:12/B10FD:29/B10FD:2B/B10FD:4A/B10FD:87/B10FD:96 [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)]

id0802g7813500

System malfunction location	•  B10FD:11: Driver-side side air bag sensor No.1 or passenger-side pressure sensor circuit short to body ground •  B10FD:12: Driver-side side air bag sensor No.1 or passenger-side pressure sensor circuit short to power supply •  B10FD:29, B10FD:96: Driver-side side air bag sensor No.1 internal malfunction •  B10FD:2B: Short circuit to driver-side side air bag sensor No.1 or passenger-side pressure sensor and other air bag sensor circuits •  B10FD:4A: Driver-side side air bag sensor No.1 ID error (assembly incorrect) •  B10FD:87: Signal reception error from driver-side side air bag sensor No.1
Detection condition	Warning •  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. •  Wiring harness between the driver-side side air bag sensor No.1 or passenger-side pressure sensor and SAS control module has a malfunction •  Driver-side side air bag sensor No.1 has a malfunction
Fail-safe function	Not applicable

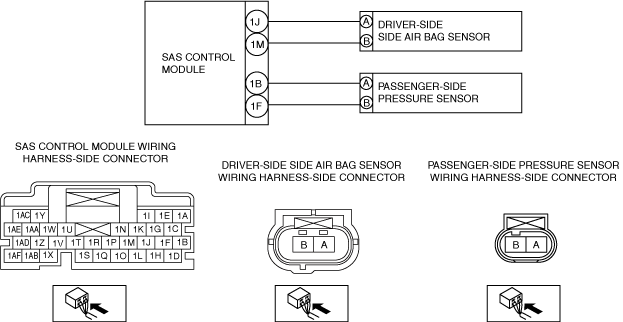

Possible cause	•  Driver-side side air bag sensor No.1 assembly incorrect •  Driver-side side air bag sensor No.1 connector malfunction •  Open circuit in the wiring harness between the following terminals: ―  SAS control module terminal 1J—driver-side side air bag sensor No.1 terminal A ―  SAS control module terminal 1M—driver-side side air bag sensor No.1 terminal B •  Short circuit to body ground in the wiring harness between the following terminals: ―  SAS control module terminal 1J—driver-side side air bag sensor No.1 terminal A ―  SAS control module terminal 1M—driver-side side air bag sensor No.1 terminal B ―  SAS control module terminal 1B—passenger-side pressure sensor terminal A ―  SAS control module terminal 1F—passenger-side pressure sensor terminal B •  Short circuit to power supply in the wiring harness between the following terminals: ―  SAS control module terminal 1J—driver-side side air bag sensor No.1 terminal A ―  SAS control module terminal 1M—driver-side side air bag sensor No.1 terminal B ―  SAS control module terminal 1B—passenger-side pressure sensor terminal A ―  SAS control module terminal 1F—passenger-side pressure sensor terminal B •  Short circuit to other air bag sensor / active bonnet sensor circuits in the wiring harness between the driver-side side air bag sensor No.1 or passenger-side pressure sensor and SAS control module •  Driver-side side air bag sensor No.1 malfunction •  SAS control module malfunction

Diagnostic Procedure

Warning

•  Handling the component parts improperly can accidentally operate (deploy) the air bag modules, pre-tensioner seat belts and active bonnet actuators which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See ACTIVE BONNET SERVICE WARNINGS.) (See ACTIVE BONNET SERVICE CAUTIONS.)

Step	Inspection		Action
1	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 •  Switch the ignition off. •  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the driver-side B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Verify that the driver-side side air bag sensor No.1 is correctly installed. (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Is the driver-side side air bag sensor No.1 correctly installed?	Yes	Go to the next step.
		No	Correctly install the driver-side side air bag sensor No.1. (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) Then go to Step 7.
2	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 CONNECTOR •  Disconnect the driver-side side air bag sensor No.1 connector. (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Inspect the driver-side side air bag sensor No.1 connector (wiring harness-side). (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the driver-side side air bag sensor No.1 connector (wiring harness-side)?	Yes	Replace the malfunctioning part, then go to Step 7.
		No	Go to the next step.
3	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 OR PASSENGER-SIDE PRESSURE SENSOR CIRCUIT FOR SHORT TO GROUND •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connectors. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Disconnect the driver and passenger-side front seat connectors. (See FRONT SEAT REMOVAL/INSTALLATION.) •  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side front pre-tensioner seat belt connectors. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) •  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.) •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side curtain air bag module connectors. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Remove the passenger-side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) •  Disconnect the passenger-side pressure sensor connector. (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Disconnect the active bonnet actuator connectors. (See ACTIVE BONNET ACTUATOR REMOVAL/INSTALLATION.) •  Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  SAS control module terminal 1J ―  SAS control module terminal 1M ―  SAS control module terminal 1B ―  SAS control module terminal 1F Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and driver-side side air bag sensor No.1 or passenger-side pressure sensor. •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and driver-side side air bag sensor No.1 or passenger-side pressure sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Replace the malfunctioning part. If there is no common connector: •  Replace the wiring harness which has a short to ground. Go to Step 7.
		No	Go to the next step.
4	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 CIRCUIT FOR OPEN CIRCUIT •  Driver-side side air bag sensor No.1 and SAS control module connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side): ―  Driver-side side air bag sensor No.1 terminal A—SAS control module terminal 1J ―  Driver-side side air bag sensor No.1 terminal B—SAS control module terminal 1M Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and driver-side side air bag sensor No.1. •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and driver-side side air bag sensor No.1 terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Replace the malfunctioning part. If there is no common connector: •  Replace the wiring harness which has an open circuit. Go to Step 7.
5	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 OR PASSENGER-SIDE PRESSURE SENSOR CIRCUIT FOR SHORT TO OTHER AIR BAG SENSOR / ACTIVE BONNET SENSOR CIRCUITS •  Driver-side side air bag sensor No.1, passenger-side pressure sensor and SAS control module connectors are disconnected. •  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side crash zone sensor connectors. (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Remove the passenger-side B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the passenger-side side air bag sensor No.1 connector. (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Remove the driver-side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver-side pressure sensor connector. (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Refer to the wiring diagram and inspect for continuity between the driver-side side air bag sensor No.1 or passenger-side pressure sensor terminals and other air bag sensor terminals (wiring harness-side). Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and driver-side side air bag sensor No.1 or passenger-side pressure sensor. •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and driver-side side air bag sensor No.1 or passenger-side pressure sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to other air bag sensor circuits. •  Replace the malfunctioning part. If there is no common connector: •  Replace the wiring harness which has a short to other air bag sensor circuits. Go to Step 7.
		No	Go to the next step.
6	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR No.1 OR PASSENGER-SIDE PRESSURE SENSOR CIRCUIT FOR SHORT TO POWER SUPPLY •  Driver-side side air bag sensor No.1, passenger-side pressure sensor and SAS control module connectors are disconnected. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Measure the voltage at the following terminals (wiring harness-side): ―  SAS control module terminal 1J ―  SAS control module terminal 1M ―  SAS control module terminal 1B ―  SAS control module terminal 1F Note •  Measure the voltage while shaking the wiring harness between the SAS control module and driver-side side air bag sensor No.1 or passenger-side pressure sensor. •  Is the voltage 0 V?	Yes	Replace the driver-side side air bag sensor No.1, then go to the next step. (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
		No	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and driver-side side air bag sensor No.1 or passenger-side pressure sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. •  Replace the malfunctioning part. If there is no common connector: •  Replace the wiring harness which has a short to power supply. Go to the next step.
7	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition off. •  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Connect the SAS control module connectors. •  Reconnect all disconnected connectors. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].) •  Are the same DTCs present?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
		No	DTC troubleshooting completed.
