HEADLINER REMOVAL/INSTALLATION
id091700801600
Preparation Before Servicing
-
Caution
-

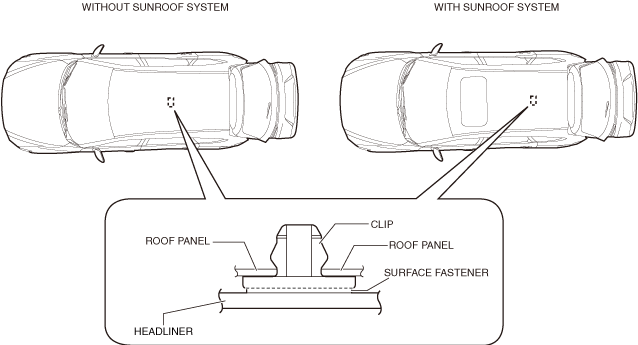

• The location of the headliner shown in the figure is installed to the roof panel using a clip via the surface fastener. If the surface fastener is peeled off or a clip is removed forcibly when removing the headliner, the headliner will be damaged. Disconnect the surface fastener using a string before removing the headliner.

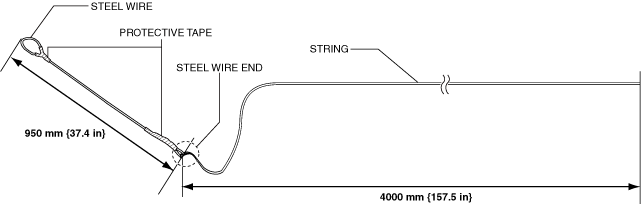

1. Process the steel wire (approx. φ3 mm {0.1 in}) into the shape shown in the figure and tie a string (approx. φ3 mm {0.1 in}) to the steel wire end.
2. To prevent it from catching on something, wrap the positions shown in the figure with protective tape.
Removal
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

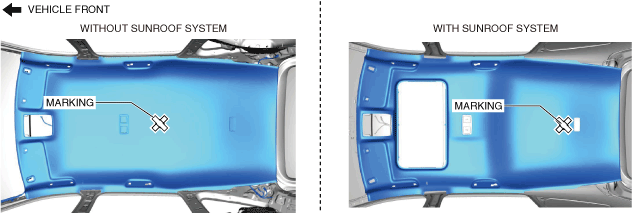

2. Mark the position shown in the figure using tape to verify the position of the surface fastener.
-
Caution
-
• When marking using tape, perform the procedure so as not to soil the headliner.
3. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (2) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (6) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (7) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (8) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (9) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (10) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (11) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (16) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (17) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (18) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (19) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (20) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (21) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (22) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (23) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (24) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (25) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
4. Remove the sunroof seaming welt. (with sunroof system)
5. Remove the hooks in the direction of arrow shown in the figure. (with sunroof system)

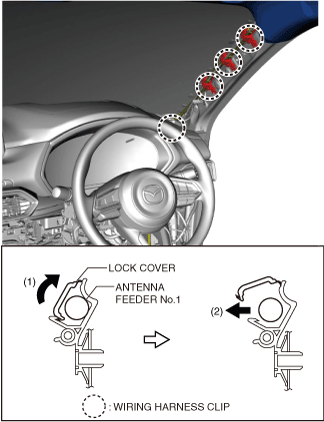

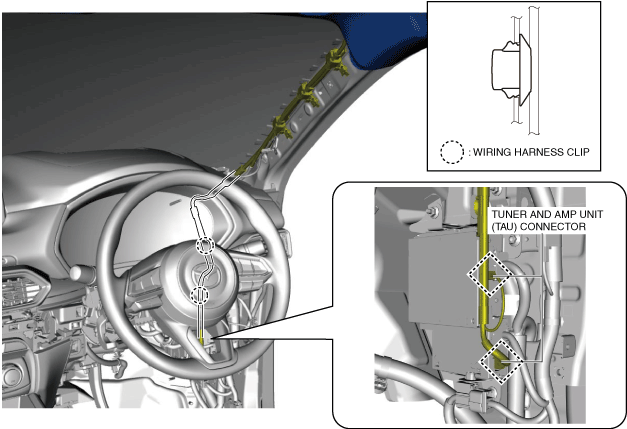

6. Open the lock covers of the wiring harness clips in the direction of arrow (1) shown in the figure and remove the antenna feeder No.1 in the direction of arrow (2).
7. Remove the wiring harness clips.
8. Disconnect the tuner and amp unit (TAU) connector.

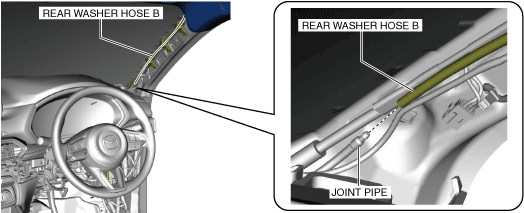

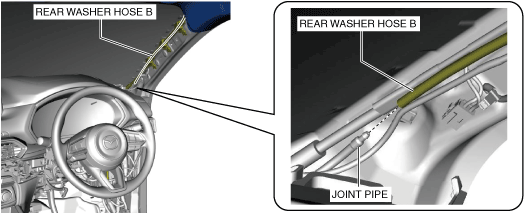

9. Disconnect rear washer hose B from the joint pipe.

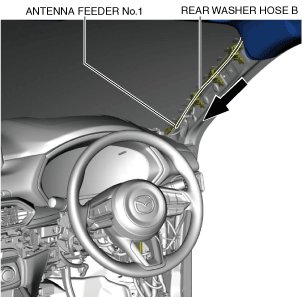

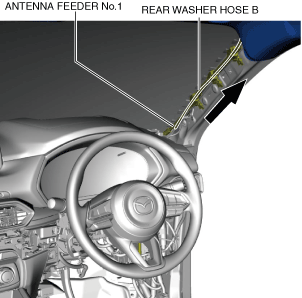

10. Pull the antenna feeder No.1 and rear washer hose B in the direction of the arrow shown in the figure and pull them out.

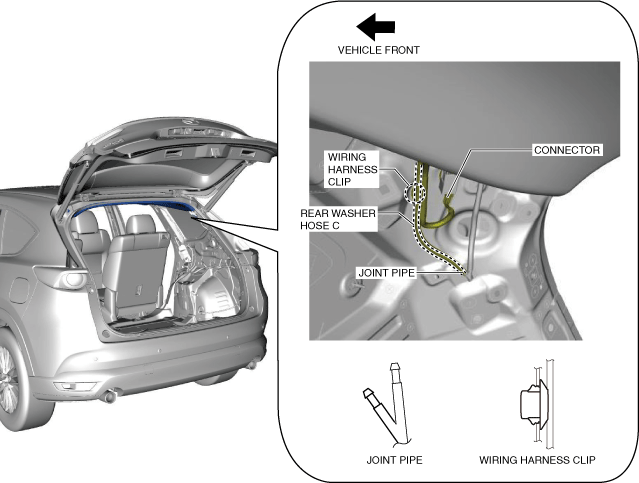

11. Disconnect rear washer hose C from the joint pipe.

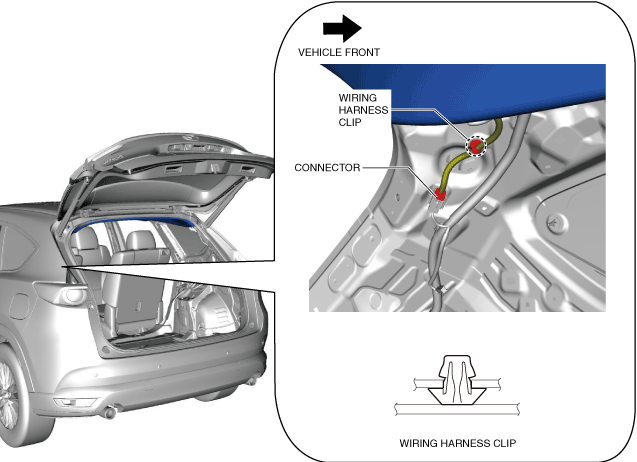

12. Remove the wiring harness clip.
13. Disconnect the connectors.
14. Remove the wiring harness clip.
15. Disconnect the connectors.

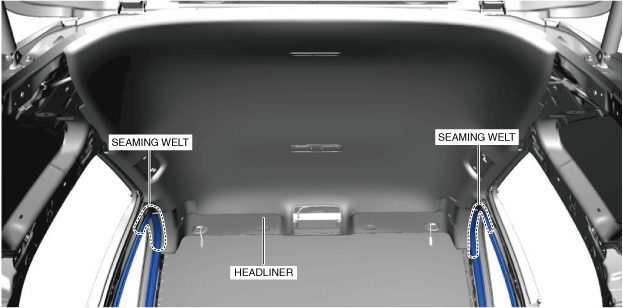

16. Temporarily install the seaming welts shown in the figure to the headliner.
-
Caution
-
• If the surface fastener is removed without temporarily installing the seaming welts, the headliner may fall off and the part may be damaged. Before detaching the surface fastener, temporarily install the seaming welts to prevent the headliner from falling off.

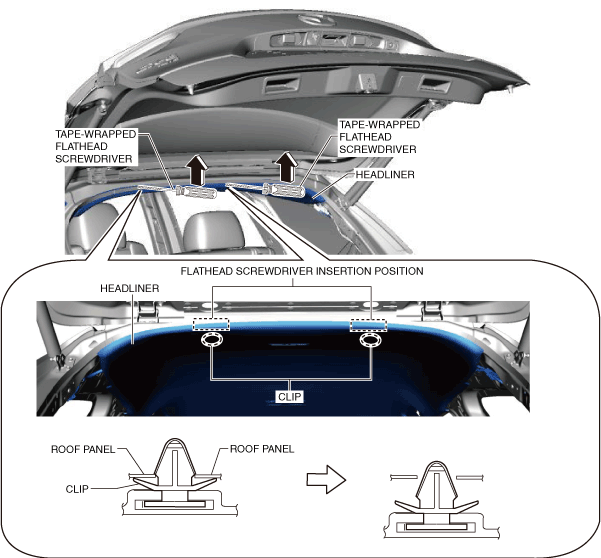

17. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the clips.

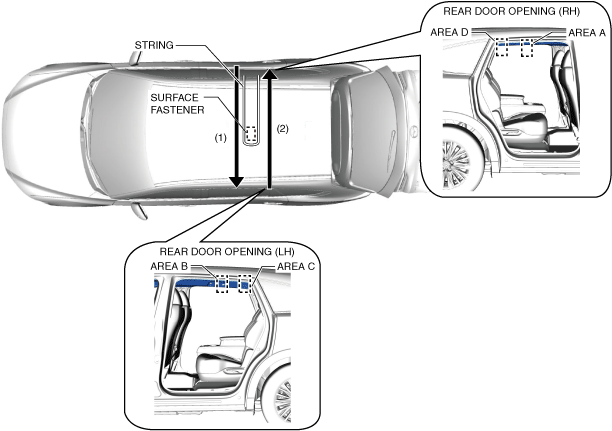

18. For vehicles without the sunroof system, hook a string with the surface fastener using the following procedure.
- (1) Insert the steel wire processed in the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.
-
- (2) Move the steel wire in the direction of arrow (1) shown in the figure and pull it out of area B shown in the figure.
-
- (3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.
-
- (4) Move the steel wire in the direction of arrow (2) shown in the figure and pull it out of area D shown in the figure.
-
- (5) Adjust the string position so that the string contacts the surface fastener.
-

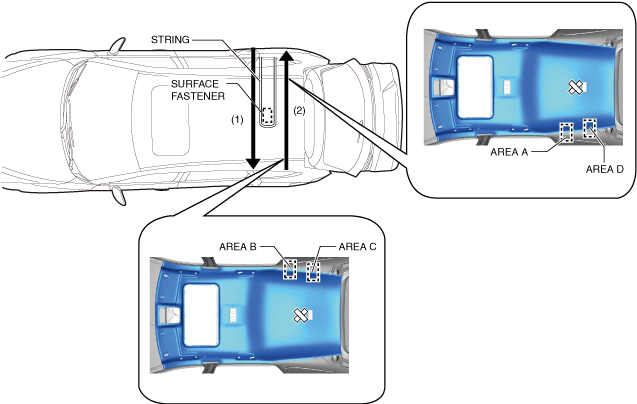

19. For vehicles with the sunroof system, hook a string with the surface fastener using the following procedure.
- (1) Insert the steel wire processed in the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.
-
- (2) Move the steel wire in the direction of arrow (1) shown in the figure and pull it out of area B shown in the figure.
-
- (3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.
-
- (4) Move the steel wire in the direction of arrow (2) shown in the figure and pull it out of area D shown in the figure.
-
- (5) Adjust the string position so that the string contacts the surface fastener.
-

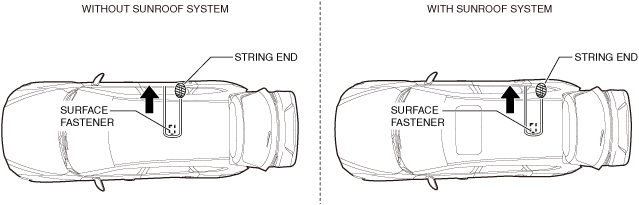

20. Pull the string in the direction of the arrow with the string end shown in the figure held and disconnect the surface fastener.
21. Partially peel back the seaming welts.

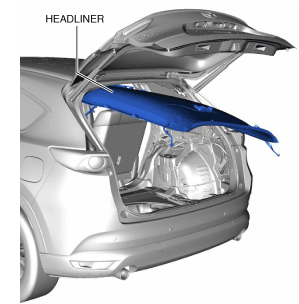

22. Take the headliner out from the opened liftgate.
Installation

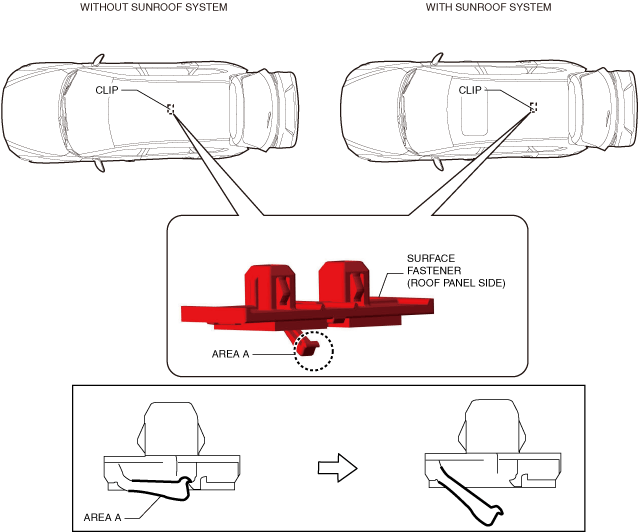

1. Pull out area A of the clip for the surface fastener (roof panel side) shown in the figure using a flathead screwdriver.
-
Note
-
• To avoid adhering the surface fastener to the headliner before installing the headliner, pull out area A of the clip.
2. Insert the headliner from the liftgate opening.

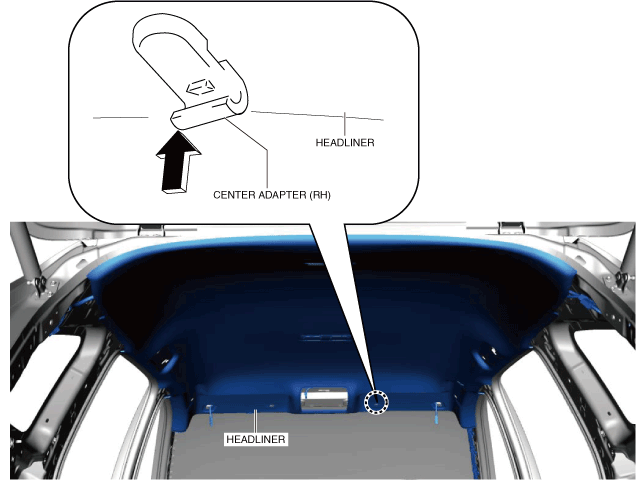

3. Move the center adapter (RH) in the direction of the arrow shown in the figure and install it.

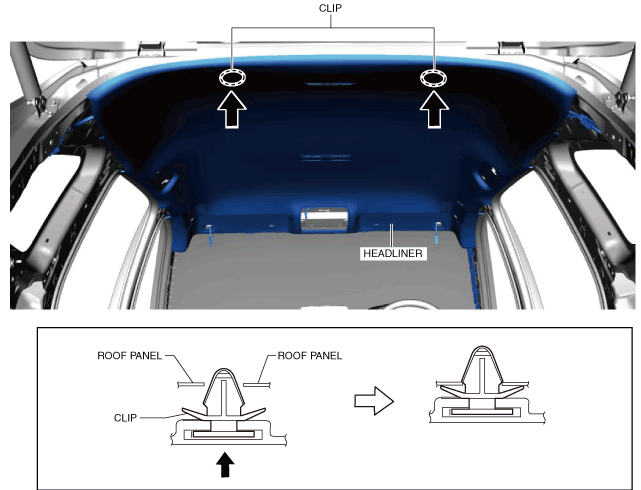

4. Press the headliner in the direction of the arrows shown in the figure and detach the clips.
5. Install the seaming welts to the positions shown in the figure.
6. Install the wiring harness clip.
7. Connect the connectors.
8. Install the wiring harness clip.
9. Connect rear washer hose C with the joint pipe.
10. Insert the antenna feeder No.1 and rear washer hose B in the direction of the arrow shown in the figure.
11. Connect rear washer hose B.
12. Connect the tuner and amp unit (TAU) connector.
13. Install the antenna feeder No.1 in the direction of arrow (1) shown in the figure and close the lock covers of the wiring harness clips in the direction of arrow (2).
14. Install the hooks in the direction of arrow shown in the figure. (with sunroof system)
15. Install the sunroof seaming welt. (with sunroof system)
16. Install the following parts:
- (1) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (2) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (4) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (5) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (6) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (7) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (8) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (9) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (10) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (12) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (15) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (16) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (17) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (18) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (19) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (20) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (21) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (22) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (23) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (24) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (25) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
17. Press the marked location by hand and press fit the surface fastener.
18. Remove the marking.
-
Caution
-
• When removing the marking, perform the procedure so as not to soil the headliner.
19. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
