BRAKE LIGHT UNIT REMOVAL/INSTALLATION
id091800400000
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts.
- (1) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (3) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (4) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (5) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (6) Bass-box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (7) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (8) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (9) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-

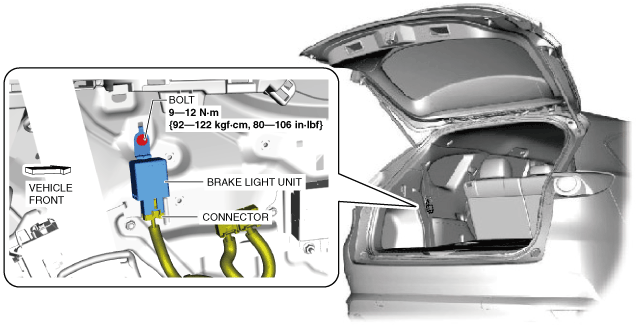

3. Remove the bolt.
4. Disconnect the connector.

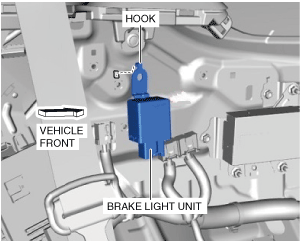

5. Pull the brake light unit hook out of the body and remove.
6. Install in the reverse order of removal.
