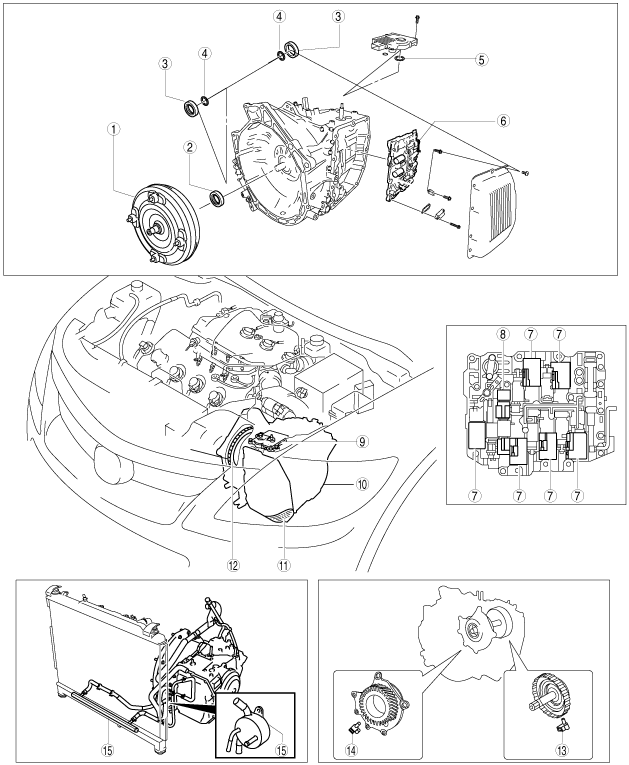

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]

id051723802000

ac9wzw00000848

1	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
2	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT [AW6A-EL, AW6AX-EL].)
3	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [AW6A-EL, AW6AX-EL].)
4	Differential gear O-ring (See DIFFERENTIAL GEAR O-RING REPLACEMENT [AW6A-EL, AW6AX-EL].)
5	Oil seal (manual shaft) (See OIL SEAL (MANUAL SHAFT) REPLACEMENT [AW6A-EL, AW6AX-EL].)
6	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
7	Solenoid valve (See SOLENOID VALVE INSPECTION [AW6A-EL, AW6AX-EL].)
8	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AW6A-EL, AW6AX-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
9	TCM (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [AW6A-EL, AW6AX-EL].) (See TCM INSPECTION [AW6A-EL, AW6AX-EL].) (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].) (See NEUTRAL POSITION LEARNING [AW6A-EL, AW6AX-EL].)
10	Automatic transaxle (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-EL].) (See ROAD TEST [AW6A-EL, AW6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
11	ATF (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [AW6A-EL, AW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL, AW6AX-EL].)
12	Drive plate (SeeDRIVE PLATE REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
13	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [AW6A-EL, AW6AX-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
14	VSS (See VEHICLE SPEED SENSOR (VSS) INSPECTION [AW6A-EL, AW6AX-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)
15	Oil cooler (See OIL COOLER FLUSHING [AW6A-EL, AW6AX-EL].) (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].) (See OIL COOLER DISASSEMBLY/ASSEMBLY [AW6A-EL, AW6AX-EL].)
