EV TRANSAXLE LOCATION INDEX [A71M]

id0525a7000200

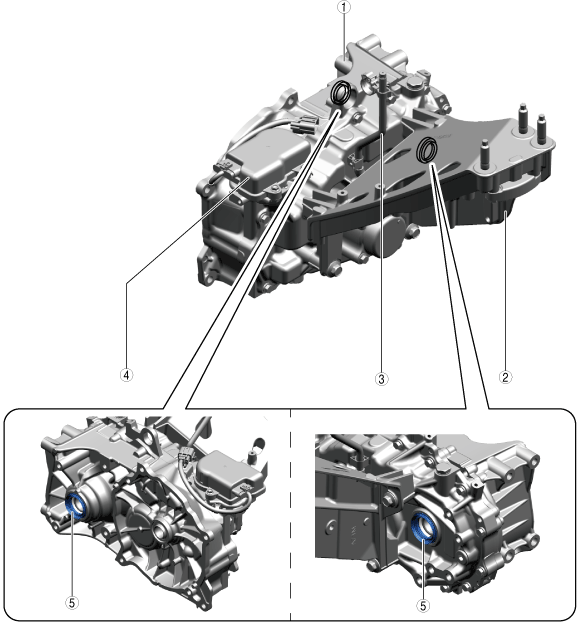

a30zzw00002030

1	EV transaxle (See EV TRANSAXLE REMOVAL/INSTALLATION [A71M].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [A71M].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [A71M].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [A71M].)
2	Support bracket (See SUPPORT BRACKET REMOVAL/INSTALLATION [A71M].)
3	Breather hose (See EV TRANSAXLE REMOVAL/INSTALLATION [A71M].)
4	Parking lock actuator (See PARKING LOCK ACTUATOR REMOVAL/INSTALLATION [A71M].) (See PARKING LOCK ACTUATOR INSPECTION [A71M].) (See PARKING LOCK ACTUATOR INITIALIZATION PROCEDURE [A71M].)
5	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [A71M].)
