SHROUD UPPER MEMBER REMOVAL/INSTALLATION

id091000042600

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Hood latch protector (See HOOD LATCH REMOVAL/INSTALLATION.)

(2)  Front bumper(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the hood release cable from the clips. (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

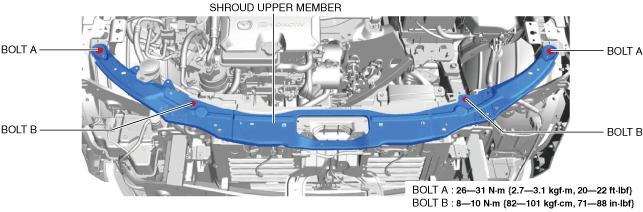

4.  Remove bolts A and B.

a30zzw00000516

5.  Detach the tab from the shroud upper member.

a30zzw00000517

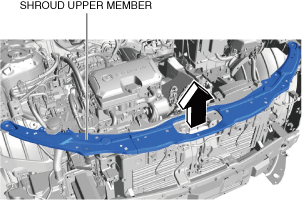

6.  Remove the shroud upper member in the direction of the arrow shown in the figure.

a30zzw00000518

7.  Install in the reverse order of removal.

8.  Perform the headlight aiming adjustment.(See HEADLIGHT AIMING [(E)].)

9.  Perform the 360°view monitor system aiming. (With 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

11.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
