FRONT DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION

id091200700300

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window main switch component (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3)  Power window subswitch component (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(5)  Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION.)

(6)  Door-electrical supply unit (See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.)

(7)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(8)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(9)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(10)  Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

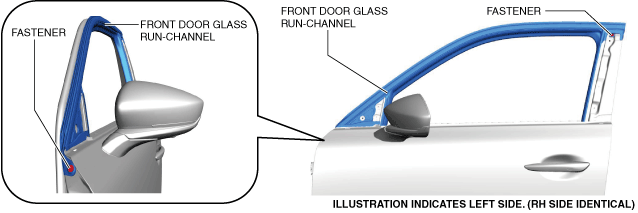

4.  Remove the fasteners.

a30zzw00000548

5.  Partially peel back the front door glass run-channel.

a30zzw00000549

6.  Move the front door glass run-channel in the order of arrow (1), arrow (2), and arrow (3) shown in the figure to detach the front door glass run-channel from the front door hook.

a30zzw00000550

7.  Remove the front door glass run-channel.

8.  Install in the reverse order of removal.

9.  Perform the power window system initialization. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)
