PASSENGER-SIDE LOWER PANEL REMOVAL [(E)]


id0917000530x2

1.  Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(4)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(6)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)
(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

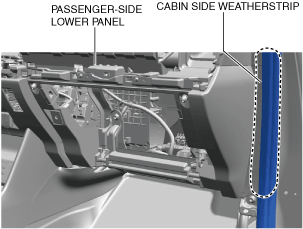

4.  Partially peel back the cabin side weatherstrip.

a30zzw00004606

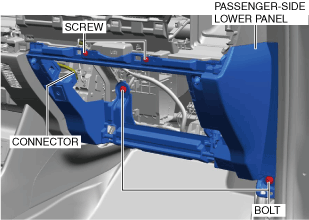

5.  Remove the bolts.

a30zzw00000090

6.  Remove the screws.

7.  Disconnect the connector. (With passenger air bag deactivation (PAD) switch)

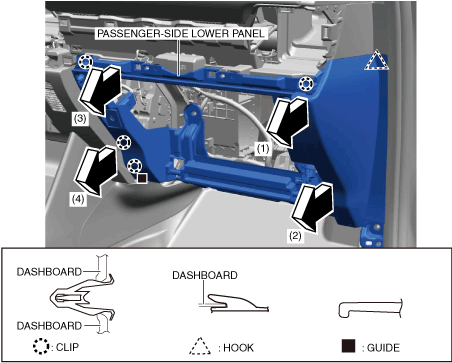

8.  Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure and detach the clips, hook and guide.

a30zzw00000091

Note
•  When replacing the passenger-side lower panel, remove the passenger air bag deactivation (PAD) switch. (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
