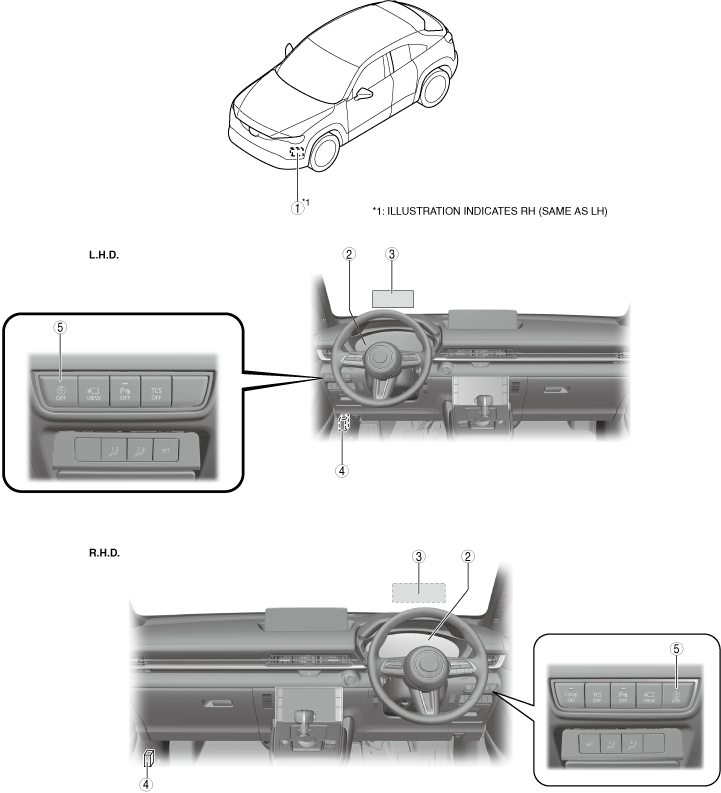

FRONT CROSS TRAFFIC ALERT (FCTA) SYSTEM LOCATION INDEX

id152000101800

a30zzw00002692

1	Front side radar sensor (See FRONT SIDE RADAR SENSOR REMOVAL/INSTALLATION.) (See FRONT SIDE RADAR SENSOR INSPECTION.) (See FRONT SIDE RADAR SENSOR AIMING.) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
3	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
4	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)].) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
5	i-ACTIVSENSE OFF switch (See i-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION.) (See i-ACTIVSENSE OFF SWITCH INSPECTION.)
