INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)]

id0922007009x2

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

Caution

•  When replacing the instrument cluster, perform the configuration to assure that the system operates correctly.

1.  To replace the instrument cluster, perform the following procedure.

(1)  Connect the M-MDS to the DLC-2.

(2)  Switch the main power ON (READY off).

(3)  Activate the M-MDS and perform the following procedure.

1)  Press [Start] to start the vehicle identification.

2)  Press the [Toolbox] tab.

3)  Press the [Work Support] icon.

4)  Press [Configuration].

5)  Press [Run] to perform the configuration.

6)  Press [IC].

7)  When [Install the new ECU] is displayed, move to the instrument cluster replacement procedure.

2.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

3.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Passenger's decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Driver's scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Driver's front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Driver's lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Driver's decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(15)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(16)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(17)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(18)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

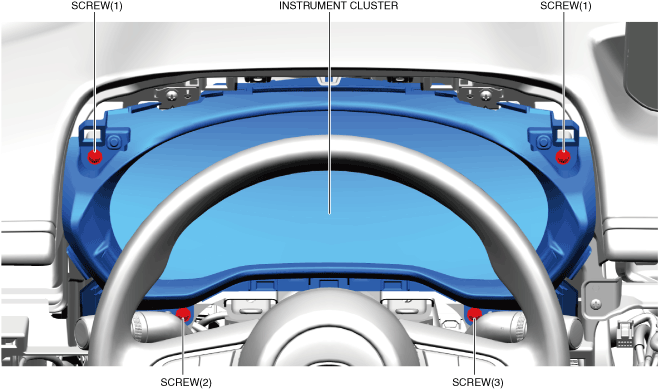

5.  Remove screws (1).

a30zzw00003929

6.  Remove screw (2).

7.  Remove screw (3).

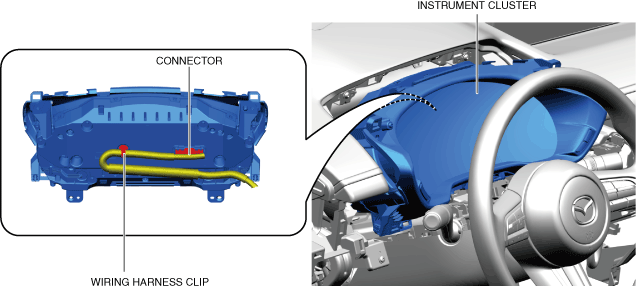

8.  Disconnect the connector.

a30zzw00003930

9.  Remove the wiring harness clip.

Caution

•  If the instrument cluster is left for a long time with its screen facing down, grease applied to the needles may leak out and the needles may not operate smoothly. When storing the instrument cluster, store it with its screen facing upward.

a30zzw00003931

10.  Remove the instrument cluster.

11.  Install in the reverse order of removal.

12.  If the instrument cluster is replaced, perform the following procedure.

(1)  Return to the M-MDS operation and press [Continue].

(2)  When the M-MDS processing is completed, press [Next].

(3)  When the M-MDS processing is completed, press [Next].

(4)  Verify that the following conditions/operations are met/completed, mark the check boxes, and then press [Next].

•  Switch the main power ON (READY off)

•  Install battery charger to vehicle

•  Lead-acid battery voltage: 11.6 V or more

•  Connect power cable to M-MDS

•  Front doors on both sides and liftgate are open

(5)  Press [Finish].

(6)  Switch the main power OFF.

(7)  Switch the main power ON (READY off) to complete global central configuration (GCC) for the instrument cluster.

(8)  Clear the DTC. (See CLEARING DTC.)
