COOLING SYSTEM

id301200100000

Outline

• The cooling system maintains the high voltage parts at an appropriate temperature by circulating coolant.

• The cooling system cools the following parts.

― Onboard charger (See ONBOARD CHARGER.)

― Electric motor (See ELECTRIC MOTOR.)

― Inverter (See INVERTER.)

― DC-DC converter (SeeDC-DC CONVERTER.)

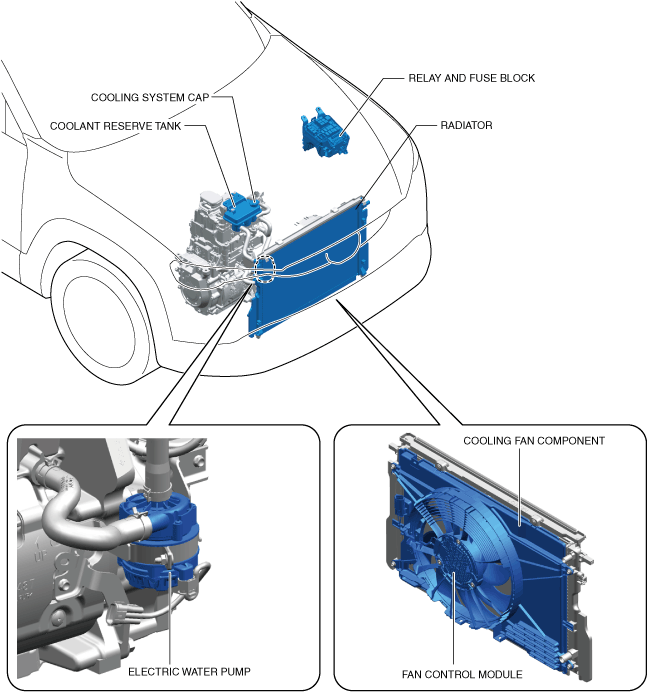

Structural View

a30zzn00000799

• The cooling system consists of the following parts.

Part name

Reference

Electric water pump

(See ELECTRIC WATER PUMP.)

Radiator

(See RADIATOR.)

Cooling system cap

(See COOLING SYSTEM CAP.)

Cooling fan component

(See COOLING FAN COMPONENT.)

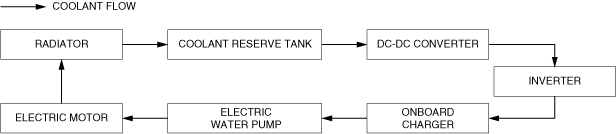

Flow Chart

a30zzn00000800
