CONTROL SYSTEM LOCATION INDEX

id304000100000

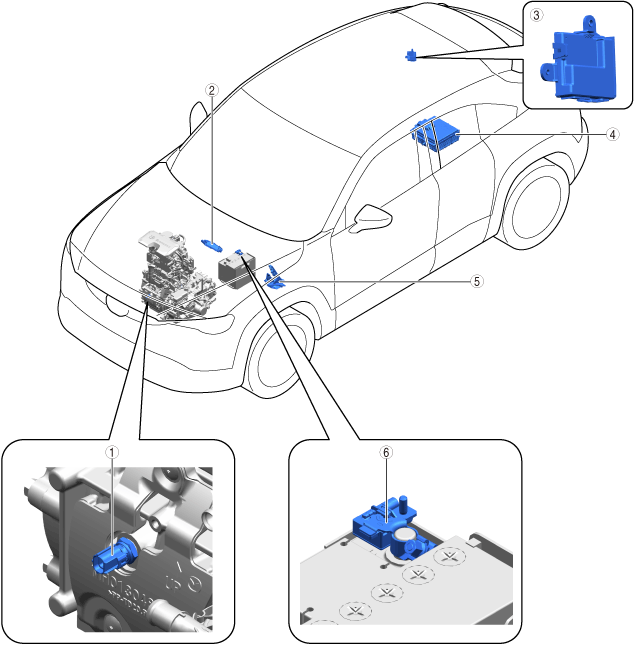

L.H.D.

a30zzw00004230

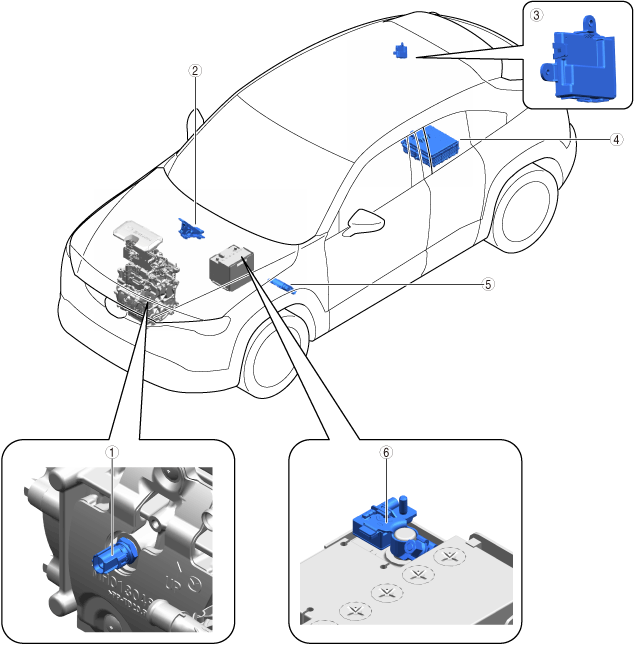

R.H.D.

a30jjw00004146

1	Coolant temperature sensor (See COOLANT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See COOLANT TEMPERATURE SENSOR INSPECTION.)	2	PCM (See PCM REMOVAL/INSTALLATION.) (See PCM INSPECTION.)
3	Charge port-electrical supply unit (See CHARGE PORT-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.) (See CHARGE PORT-ELECTRICAL SUPPLY UNIT INSPECTION.)	4	On board charger (See ONBOARD CHARGER REMOVAL/INSTALLATION.) (See BATTERY CHARGE CONTROL MODULE INSPECTION.)
5	Accelerator position sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION.) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION.)	6	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION.) (See CURRENT SENSOR INSPECTION.)
