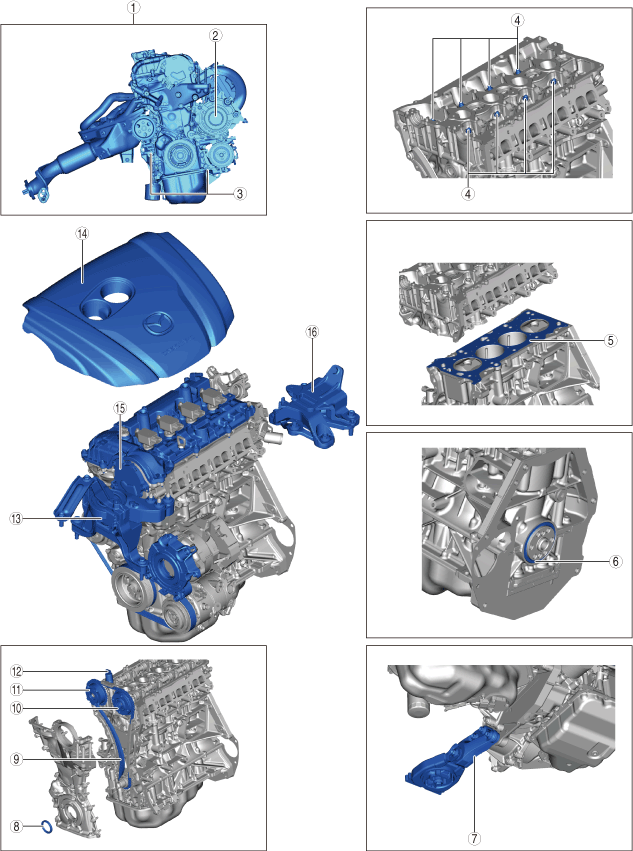

ENGINE LOCATION INDEX [SKYACTIV-G 2.0]

id0110h2800100

a30zzw00005016

1	Engine (See ENGINE TUNE-UP [SKYACTIV-G 2.0].) (See COMPRESSION INSPECTION [SKYACTIV-G 2.0].) (See ENGINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ENGINE DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].)
2	Decoupling ring tensioner (See DECOUPLING RING TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See DECOUPLING RING TENSIONER INSPECTION [SKYACTIV-G 2.0].)
3	Drive belt (See DRIVE BELT INSPECTION [SKYACTIV-G 2.0].) (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [SKYACTIV-G 2.0].) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [SKYACTIV-G 2.0].)
6	Rear oil seal (See REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.0].)
7	No.1 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G 2.0].)
9	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
10	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.0].) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
11	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.0].) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
12	OCV (See OIL CONTROL VALVE (OCV) INSPECTION [SKYACTIV-G 2.0].) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
13	No.3 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].)
14	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
15	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [SKYACTIV-G 2.0].) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
16	No.4 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].)
