HVAC BASIC SYSTEM LOCATION INDEX

id071100701800

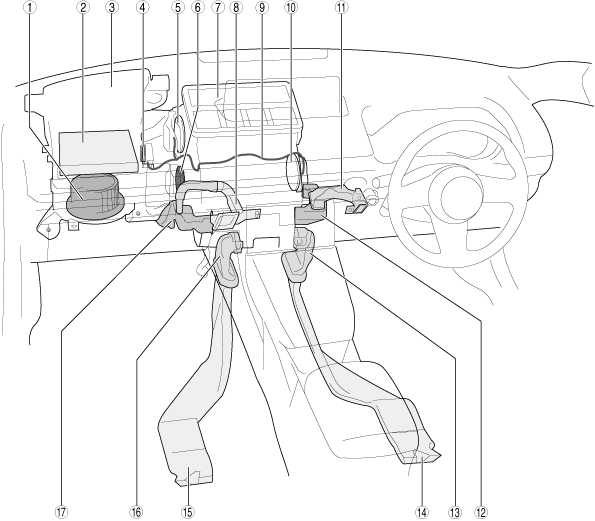

Inside Cabin

a30jjw00001955

1
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION.)
(See BLOWER MOTOR INSPECTION.)
2
Air filter
(See AIR FILTER REMOVAL/INSTALLATION.)
(See AIR FILTER INSPECTION.)
3
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
4
Air intake link
(See AIR INTAKE LINK REMOVAL/INSTALLATION.)
5
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
6
Passenger-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
7
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
8
Passenger-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
9
A/C unit short-cord
(See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION.)
10
Driver-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
11
Driver-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
12
Driver-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
13
Driver-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
14
Driver-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
15
Passenger-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
16
Passenger-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
17
Passenger-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

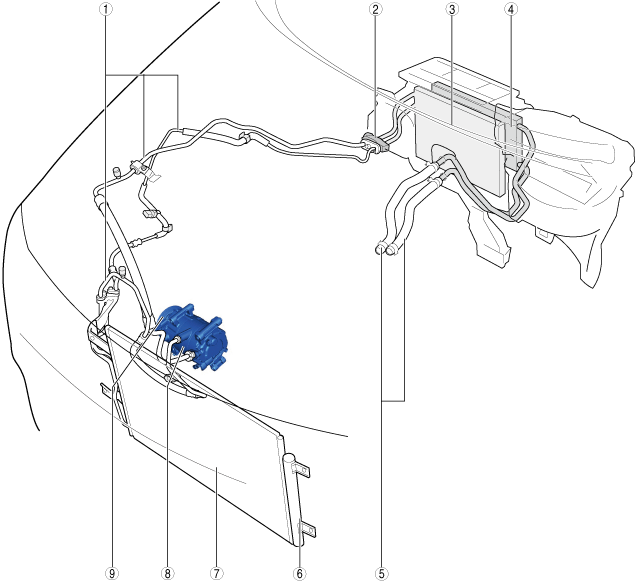

Exterior

a30jjw00001956

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION.)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Evaporator
(See EVAPORATOR INSPECTION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION.)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION.)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION.)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY.)
(See MAGNETIC CLUTCH ADJUSTMENT.)
(See MAGNETIC CLUTCH INSPECTION.)
