FRONT HEAT DUCT REMOVAL/INSTALLATION

id071100702800

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Driver-side front heat duct No.1

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(15)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)

(17)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the driver-side front heat duct No.2. (See Driver-side front heat duct No.2.)

5.  Insert a flathead screwdriver into the position shown in the figure.

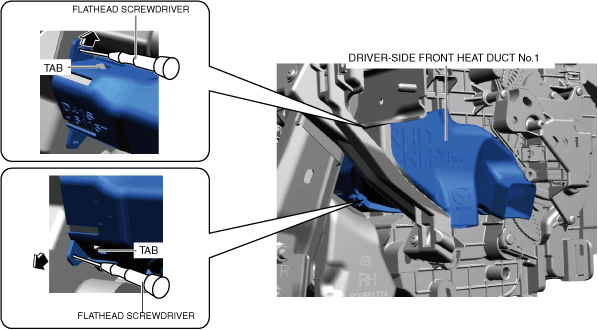

a30zzw00006227

6.  Move the driver-side front heat duct No.1 in the direction of the arrow to detach the tab from driver-side front heat duct No.1.

7.  Remove the driver-side front heat duct No.1.

8.  Install in the reverse order of removal.

Driver-side front heat duct No.2

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(15)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)

(17)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the screw.

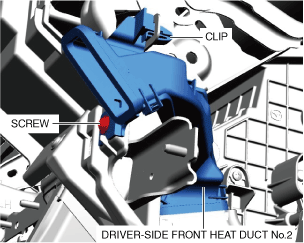

a30zzw00006228

5.  Remove the clip.

6.  Remove the driver-side front heat duct No.2.

7.  Install in the reverse order of removal.

Passenger-side front heat duct No.1

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(15)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)

(17)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the passenger-side front heat duct No.2. (See Passenger-side front heat duct No.2.)

5.  Insert a flathead screwdriver into the position shown in the figure.

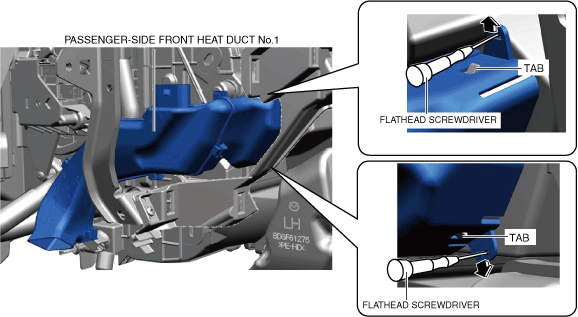

a30zzw00006229

6.  Move the passenger-side front heat duct No.1 in the direction of the arrow to detach the tab from passenger-side front heat duct No.1.

7.  Remove the passenger-side front heat duct No.1.

8.  Install in the reverse order of removal.

Passenger-side front heat duct No.2

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(15)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)

(17)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove the screw.

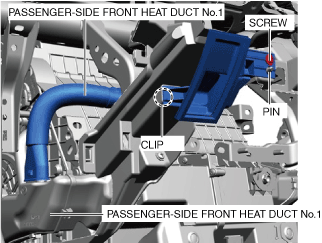

a30zzw00006230

5.  Disconnect the passenger-side front heat duct No.2 from the passenger-side front heat duct No.1.

6.  Remove the clip.

7.  Detach the tab of passenger-side front heat duct No.2 from the dashboard.

8.  Install in the reverse order of removal.
