FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION

id092100700800

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(13)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(15)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

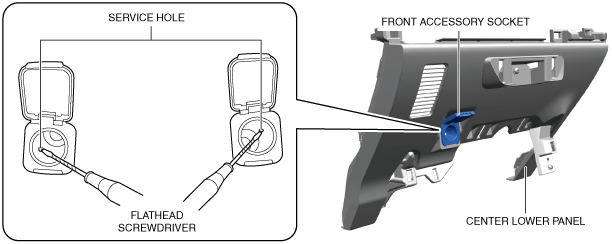

4.  Insert a tape-wrapped flathead screwdriver into the service hole.

a30zzw00006466

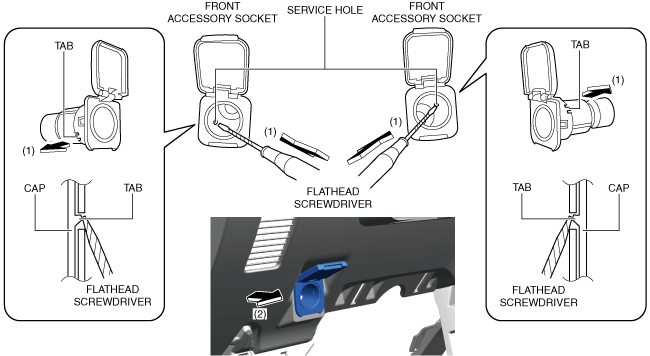

5.  While pressing the cap tab in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, press the front accessory socket in the direction of the arrow (2) to detach the cap tab from the front accessory socket.

a30zzw00006467

6.  Pull the front accessory socket in the direction of the arrow shown in the figure and remove it.

a30zzw00006468

7.  While pressing the cap tabs in the direction of the arrows (1) shown in the figure, press the cap in the direction of the arrow (2) to detach the cap tabs from the center lower panel.

a30zzw00006469

8.  Remove the cap.

9.  Install in the reverse order of removal.
